Leviton AC Power Module, Junction Box, 1 Duplex Receptacle

$15.21 to $33.98
SKU: LV47605ACx

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The AC Junction Box Kit, an accessory for Leviton's Structured Media Center (SMC) features one 15 Amp receptacle housed in a white metal enclosure which drops into an opening in the bottom of the SMC. The unit has several cable entry knockouts for power service connections. Available with surge protection or without surge protection.

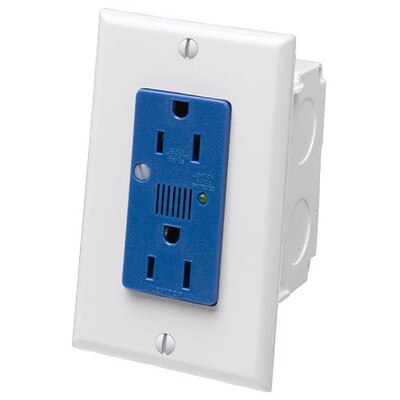

J-Box Kit with Surge Protection Features:

  • Hospital Grade surge-protected units provide greater protection for line-voltage modules, including multi-stage defense L-N,L-G,N-G.
  • Provides 2 Outlets of protected power.
  • Safety Clips protect outlets against dust, dirt and debris.
  • Cable knockout on bottom for power service connection.
  • Saves valuable real estate by mounting on outside of Structured Media Enclosures.
  • Features EMI/RFI filtering and meets UL1449 standards.

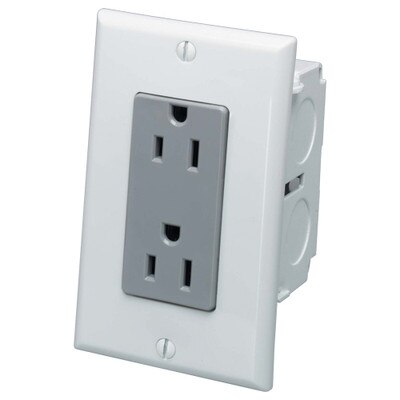

J-Box Kit without Surge Protection Features:

  • Provides 2 Outlets of power.
  • Safety Clips protect outlets against dust, dirt and debris.
  • Cable knockout on bottom for power service connection.
  • Saves valuable real estate by mounting on outside of Structured Media Enclosures.

Tech Specs

J-Box Kit with Surge Protection Specifications:

  • Type:AC Power Module
  • Output Voltage:120 Volt
  • Input Voltage:120 Volt AC
  • Output Power:15 Amp
  • Feature:Surge
  • NEMA:5-15R
  • Quantity of Outlets:2
  • Series Compatibility:140, 280, 420 Series Compatible
  • Standards and Certifications:UL

J-Box Kit without Surge Protection Specifications

  • Type:AC Power Module
  • Output Voltage:120 Volt
  • Input Voltage:120 Volt AC
  • Output Power:15 Amp
  • NEMA:5-15R
  • Quantity of Outlets:2
  • Series Compatibility:140, 280, 420 Series Compatible
  • Standards and Certifications:UL
