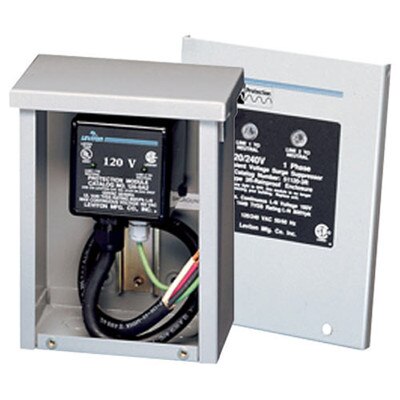

Leviton Outdoor Whole House Surge Suppressor

$306.14
Item # LV511203R

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Panel Mounted Surge Protective Devices (SPD) – Provides homes with protection from high-energy transient voltage surges that can damage sensitive electronic circuits in computers, audio and video components and electronic appliances. DHC components incorporate micro circuitry and Leviton highly recommends protecting the DHC network from powerline surges. Leviton Panel Mount devices feature unique hybrid suppression circuitry for outstanding whole house surge protection. Compatible with all DHC components. Single-Phase-NEMA 3R enclosure suitable for outdoor use.

Specifications

  • Voltage: 120/240 Volt
  • Pole: 3
  • Wire: 4
  • Protection Mode: 4-Mode
  • Diagnostics: LED
  • Modules: Fixed
  • Alarm: None
  • Dry Contacts: None
  • MCOV: 180V AC
  • UL1449 Impulse 6kV/500A L-N/L-G/N-G/L-L: 800/ / /
  • Max Surge Current kA L-N: 50kA
  • Noise Rejection: N/A
  • Circuitry: MOV-Based Suppression
  • Enclosure Rating: NEMA 3R
  • Standards and Certifications: UL1449 / CSA / ANSI/IEEE Cat ABC
  • Voltage: 120/240 Volt
  • Pole: 3
  • Wire: 4
  • Protection Mode: 4-Mode
  • Diagnostics: LED
  • Modules: Fixed
  • Alarm: None
  • Dry Contacts: None
  • MCOV: 180V AC
  • Max Surge Current kA L-N: 50kA
  • Noise Rejection: N/A
  • Circuitry: MOV-Based Suppression
  • Enclosure Rating: NEMA 3R
  • Standards and Certifications: UL1449 / CSA / ANSI/IEEE Cat ABC
