  • Leviton QuickPort Wallplate, 1-Gang, Angled 2-Port

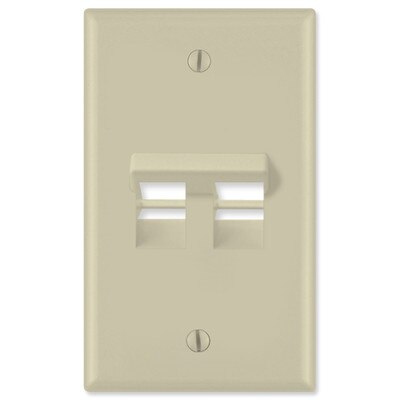

Leviton QuickPort Wallplate, 1-Gang, Angled 2-Port

Item # LV410812xP

Select an option for availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Field-configurable angled wall plates accept QuickPort snap-in modules to support multimedia applications with 2- or 4-ports. Use where an economical one-piece, single-gang flush-mount housing is desired. Three color choices, with color-matched screws.

  • Angled ports facilitate optimal cable management, ensuring proper bend radius compliance in front and back of connector
  • Color-matched wallplate screws
  • Three color choices: white, light almond, and ivory
  • Fits within minimum rectangular NEMA openings
  • Compatible with all individual UTP, Fiber, and AV QuickPort modules*
  • Individual-port configurability allows specification flexibility
  • Ideal for CAT 6A applications at the workstation

* Due to product dimensions, Shielded Connectors must be installed horizontally (side-by-side). Shielded Connectors installed vertically will not fit correctly into a QuickPort wallplate.

  • Dimensions: 4.5(H) x 2.75(W) x 0.98(D) inches
  • Capacity: 2 ports
  • Materials: High-impact, fire-retardant plastic rated UL 94V-0
  • Mounting: Color matched screws
