Leviton Single-Pole AC Quiet Toggle Switch, Momentary Contact, 15A, 120/277V
Product Description
Leviton's Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
15 Amp, 120/277 Volt, Toggle Double-Throw Ctr-OFF Momentary Contact Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Grounding, Back and Side Wired
NOTE: Does not include wallplate.
Tech Specs
- Part Number:

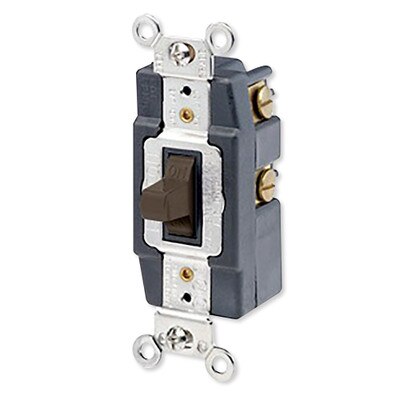

- Brown: 1256

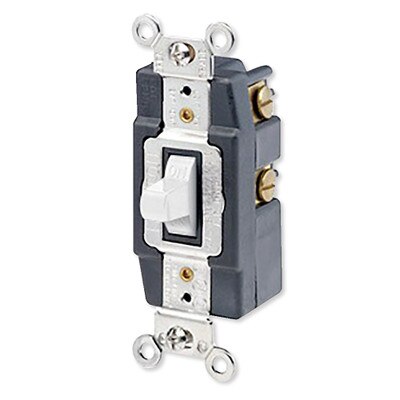

- White: 1256-W

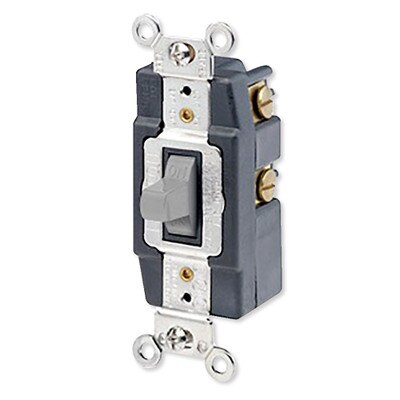

- Gray: 1256-GY
- Ivory: 1256-I
- Warranty: 10-Year Limited
AC Horsepower Ratings
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Max. Amperage: 12 Amp
Electrical
- Amperage: 15 Amp
- Voltage: 120/277 Volt
- Grounding: Grounding
- Dielectric Voltage: Withstands 1500V for 1 minute
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Temperature Rise: Maximum 86°F (30°C) rise
- Endurance: 50,000 cycles minimum
Environmental
- Flammability: Rated V-2 per UL94
- Operating Temperature: -40° to 149°F (-40° to 65°C)
Material
- Strap Material: Steel
- Base Material: Thermoplastic
- Toggle: Polycarbonate
- Cover Material: Thermoplastic
- Contact Material: Silver Alloy
- Terminal Screws: Brass 8-32
- Grounding Screw: Brass 8-32
- Ground Clips: Brass
Mechanical
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Terminal Accom.: #14-#10 AWG back wired; #14-#12 AWG side wired
- Product ID: Ratings are permanently marked on device
- Torque Range: 12-14 inch pounds
Product Features
- Grounding: Grounding
- Feature: Double-Throw Ctr-OFF Momentary Contact
- Voltage: 120/277 Volt
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Body Material: Thermoplastic
- Strap Material: Steel
Standards and Certifications
- NEMA: WD-1 and WD-6
- ANSI: C-73
- UL Fed Spec WS896E: File #E7458
- UL Standard: UL 20
- CSA C22.2 No. 111: File #152105
- NOM: 057
- RoHS: Compliant
