Leviton Structured Media Center Enclosure, No Cover

$39.20 to $105.72
SKU: LV47605xxN

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

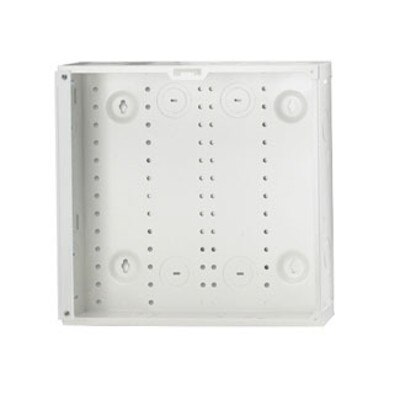

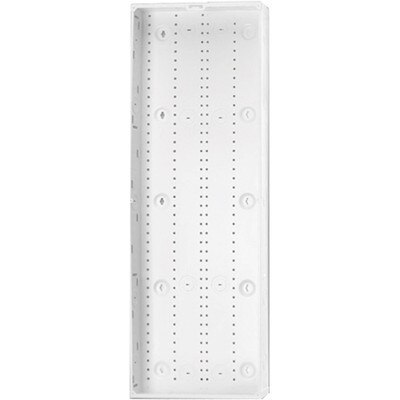

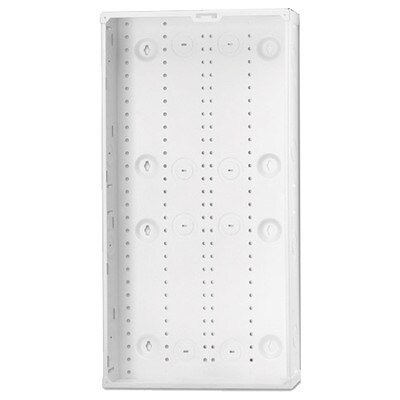

The Series 280 and 420 Structured Media enclosures are used to terminate all of the home-run wires from wall outlets and provide a distribution point for voice, data and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. The 280 and 420 Structured Media enclosures (SMCs) can be surface-mounted or recessed by mounting between wall studs (on 16 Inch centers), using provided wood screws for a clean and professionally finished appearance. After installation of the drywall, during the trim-out stage, the distribution panel(s) and cover can be installed.

Features:

  • Positive stops on housing side walls prevent enclosure from falling through studs during installation.
  • One piece white steel unit hold full and half width expansion modules.
  • Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
  • Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts.
  • Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing.
  • Cut-out in base of enclosure for mounting single gang J-Box kit.
  • Six 3 Inch square self-healing foam grommets accommodate cable bundles.

Tech Specs

  • Item: Enclosure Only
  • Gauge of Steel: 18 Gauge
  • Paint Finish: Powder-Coated
  • Module Capacity: Module count dependant of the type used.
  • Color: White
  • Standards and Certifications: ACA/CULUS/UL/TIA/EIA/FCC
