Leviton Universal Occupancy Sensor Wall Switch, 1800W, Auto On (Open Box)

$24.75 $42.11
SKU: LVIPS151LZ_OB

1 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Leviton's Universal Vacancy and Occupancy Sensors combine state-of-the-art technology with new aesthetics to provide optimal management of lighting and motor loads and a choice of either Manual-ON (Vacancy Sensor) or Automatic-ON (Occupancy Sensor) switching. These energy-saving sensors are engineered to control current LED, CFL and incandescent loads and ensure that lights/motors will turn ON manually (vacancy) or automatically (occupancy) and turn OFF automatically when motion is no longer detected within the covered range. Designed to fit in a standard wallbox, both devices offer 180-degree Field of View and 900 sq. ft. of coverage.

All models have screw terminals for easy installation and do not require a neutral wire for connection. The devices feature a time delay setting which allows users the option to delay the lights/motor load from switching off for 30 seconds, 5 minutes, 15 minutes or 30 minutes. For example, closet lighting would ideally be set to turn OFF in 30 seconds while a bathroom fan may be set to turn OFF 15 minutes after the space is vacated.

Item Description:

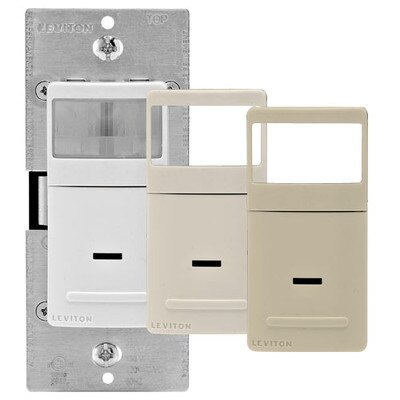

Occupancy detector, 180 Degree PIR Wall Box Sensor, Single Pole & 3-Way, 15 Amp, White assembled on the device, ivory and light almond color change kit included. Wall Plate Not Included.

Features:

  • Universal Light Control – Switches Incandescent, CFL, LED and Fluorescent Ballasts using relay technology
  • Automatic-ON/Automatic OFF operation for seamless energy management
  • Low-Profile design eliminates an obtrusive "scanning device" look. Elegant styling complements any interior and coordinates with Leviton's popular line of Decora wiring devices
  • 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Segmented lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes
  • LED Indicator Light flashes when sensor detects motion to verify detection is active
  • Unit can be used for 120V lighting. Compatible with both electronic and magnetic ballasts or 1/2 HP loads
  • Relay switches at zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts

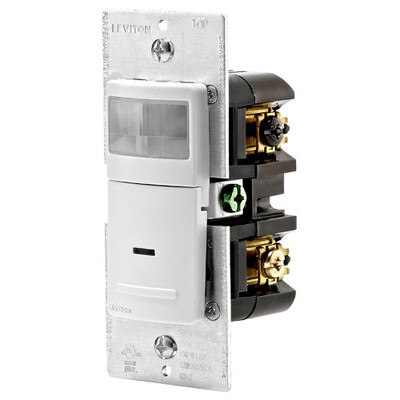

  • Fits in standard wallbox; Single Pole or Multi Location with IPV0R
  • Neutral wire required for new construction applications

Tech Specs

  • Part Number: IPS15-1LZ
  • UPC: 078477570456
  • Switch Type: Single-Pole
  • Adjustment: Manual
  • Sensor Technology: Passive Infrared
  • Pattern Degrees: 180
  • Coverage Range: 900 Sq. Ft.
  • Time Adjustment: 30 seconds to 30 minutes
  • Load Rating: 1800W Incandescent, 600W LED and CFL
  • Voltage: 120 Volt AC 60 Hz
  • Neutral: Required for new construction applications
  • Standards and Certifications: CUL/US
  • Color: White, Ivory, Light Almond
