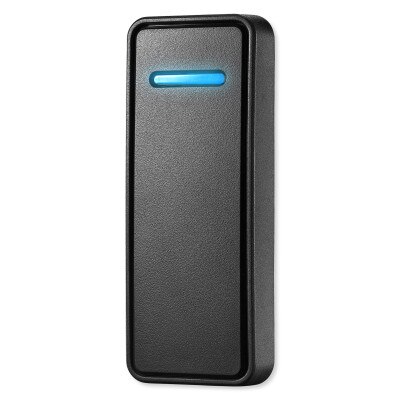

Linear Access Control Bluetooth + 125 kHz Prox Reader

$373.00
SKU: LNBT125W

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

An excellent fit for both new projects and existing installations, the Linear BT125-W Access Control Bluetooth + 125 kHz Prox Reader combines the power of Bluetooth technology with 125 kHz proximity to manage authorized access to buildings or areas.

Migrate existing installations to Bluetooth at your own pace as users can continue to use their 125 kHz proximity credentials (keycards, ISO cards, or key fobs) during the transition to Bluetooth credentials. Reads most proximity cards made by HID, AWID and Farpointe (HAF). Reader-to-Controller data is output in Wiegand format, making it compatible with a vast majority of existing access control panels.

Features:

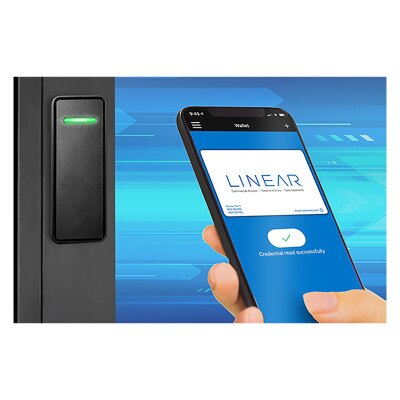

  • Reads Linear mobile credentials via BLE (Bluetooth Low Energy)
  • Reads HID, AWID and Farpointe 125 kHz Prox cards
  • Requires smartphone app and purchase of mobile credentials
  • A single reader can fit metal door and window frames, single-gang wall boxes, or flat surfaces
  • Blue and Green LEDs indicate successfully detected authorized credentials
  • Adjustable detection range between 0 to 30 feet for Bluetooth users, 3ft for 125 kHz physical devices

In The Box:

  • Prox Reader
  • Mullion Mount
  • Single-Gang Mount

NOTE: The Prox Reader outputs reader-to-controller data using Weigand security protocol.

Tech Specs

  • Part Number: BT125-W
  • UPC: 093863148767
  • Mounting: Includes slim mullion mount and single-gang mount
  • Voltage: 8-14 VDC
  • Current Draw:
    • BT135-W: 60 mA Typical, 250 mA peak
    • BT125-W: 60 mA Typical. 120 mA peak
  • Read Range:
    • Mobile Credentials: Up to 2", Up to 10", Up to 15', Up to 30', Tap and Go
    • Physical Credentials: Up to 3"
  • Cabling:
    • Less than 300 ft: 24 AWG minimum, multi-conductor stranded with an overall foil shield recommended.
    • 300 – 500 ft: 22 AWG minimum, multi-conductor stranded with an overall foil shield recommended.
  • Interfaces Supported: Linear Bluetooth Mobile Credentials, HID, AWID and Farpointe (HAF) prox cards and fobs
  • Operating Temperature: –31° F to 150° F (–35° C to +66° C)
  • Operating Humidity: 0% to 90% Relative Humidity
  • Dimensions:
    • Mullion: 1.48" W x 4.74" H x 0.54" D (37.5 mm x 120 mm x 13.7 mm)
    • Single-Gang: 2.99" W x 4.74" H x 0.54" D (76.2 mm x 120 mm x 13.7 mm)
  • Audio Tone Beeper: Included Standard
  • Ratings and Certifications: FCC, CE, RCM, ETL, IP67
  • Warranty: Limited Lifetime
