  • Linear MegaCode Block Coded Visor Transmitter, 1-Channel (Open Box)

Linear MegaCode Block Coded Visor Transmitter, 1-Channel (Open Box)

$11.10 $22.00

1 available at this price.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

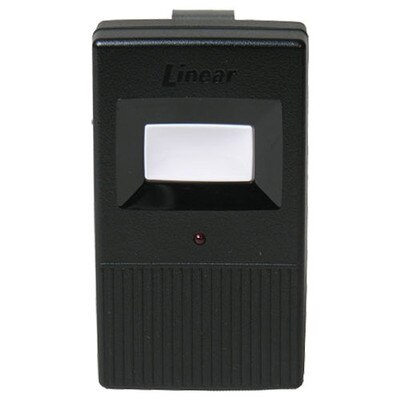

The Model MT-1B 1-Channel Block Coded Visor Transmitter is designed for use with Linear's access control products. The Model MT-1B is a single-channel device. Pressing the button on the transmitter will send a signal. A visor clip is included.


  • Compatible with all Linear access receivers and controllers
  • Superior transmission range
  • Factory programmed MegaCode format supports over 1,000,000 codes
  • Operate LED
  • Visor clip included
  • 9-volt battery supplied
  • MegaCode format
  • RF Frequency: 318 MHz
  • 2.2" W x 3.8" H x 0.9" D

The transmitter is MegaCode format, which means each transmitter is factory preprogrammed with one of over 1,000,000 codes, virtually eliminating the possibility of code duplication. Because the receiver "learns" each specific code, no unauthorized person can gain access to the system by reprogramming a transmitter.

Block coded transmitters are factory programmed to a sequential series of transmitter ID codes. When used with a Linear access controller, transmitters can be locally or remotely programmed into memory by entering the first and last codes of the block into the system. Facility codes can be selected to further customize the system.

Tech Specs

  • Part Number: ACP00877
  • UPC: 093863106552
  • Frequency: 318 MHz
  • Number of Codes: 1,000,000 plus ID codes
  • Code Set Method: Factory programmed
  • Channels: one channel
  • Power: one 9 V battery (supplied)
  • Dimensions: 2.2" W x 3.8" H x 0.9" D (56 x 97 x 23 mm)
  • Warranty: 1 Year
