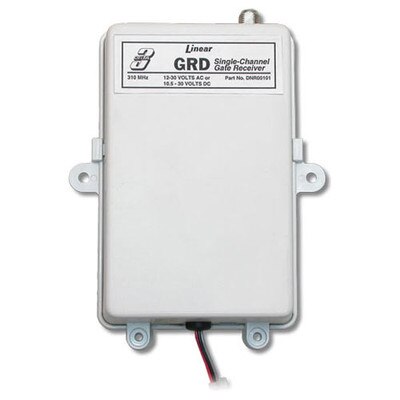

Linear Delta-3 Gate Receiver, 1-Channel

The GRD is a 1-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The receiver uses the Delta-3 radio format, with 256 possible codes, set by dipswitch.

The GRD and the GRD-2 are two auto sensing Delta 3 format gate receivers from Linear. They eliminate any chance of damage to either the gate operator or themselves from running off the wrong voltage. Nearly all gate operators offer either 24 or 12 volts AC or DC as accessory power. Because the GRD and GRD-2 are auto sensing, each receiver recognizes the gate operator's correct voltage. As a result, installers can be assured of always having the correct model gate receiver on the truck.

The two receivers can operate from 12-30 volts AC or 10.5-30 volts DC and are normally powered from the gate operator. Their relay contact(s) are rated at 5 amps @ 30 volts AC/DC.

Linear's Delta 3 is a popular radio format for ga
