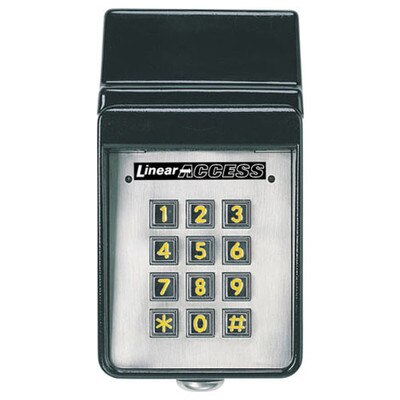

Linear MegaCode Exterior Keypad Transmitter

The Model MDKP Exterior Wireless Keypad can transmit a unique signal for each 1-6 digit PIN code entered. It has a built-in radio transmitter with a 250-foot range in line-of-sight conditions. Access codes are programmed into the access controller or receiver.

To operate the MDKP, a user simply enters a PIN followed by the # key, and the code is transmitted to the receiver for validation. Downlighting can be turned on by pressing the # key twice; it remains on for 30 seconds or until a code is sent. The MDKP can be mounted on either a wall or a gooseneck.

Features:

• Internal antenna
• 1-6 digit PIN for each user
• Long life lithium battery
• Rugged cast aluminum housing
• Built-in downlight
• Power: 9-volt lithium battery
• Codes: 1,000,000+ (MegaCode format)
• RF frequency: 318 MHz
• Dimensions: 4" W x 7" H x 3" D
