  • Linear Power Supply in Enclosure, 2A, 4 Output, 12VDC/24VDC

Linear Power Supply in Enclosure, 2A, 4 Output, 12VDC/24VDC

$249.00
SKU: LNPS124D02A4

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The PS124 Series power supplies offer both 12VDC and 24VDC outputs. Ideal to pair many of the Linear branded products such as: RE-1, RE-2, AE, AM, Max (secured series), e3 Access Systems (non-bundles), Keypads, ProxPads etc. Innovative Power Supply design utilizes a "Step Up" regulator, allowing the system to boost 12 VDC to 24 VDC. Each auxiliary output is selectable for 12 or 24 volts. Our engineered design eliminates the need to have two separate power supplies for separate voltages.

  • Four (4) Individual Aux Outputs – each output is selectable for 12 or 24 volts
  • PTC Protection (Positive Temperature Coefficient) resettable fuses enables the Power Distribution Box to reset and provide power without the need to replace a physical fuse.
  • 2 Individual Access Controller Power Outputs (Powers two modules in one housing)
  • Battery Charging Output – up to 2 – 7 AMP batteries

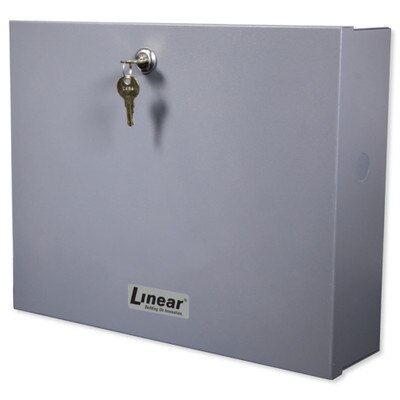

  • Metal cabinet houses all wiring and batteries, multiple mounting options, knock outs and wire tie down loops for fast installation and flexible mounting options.
  • e3 monitoring of AC power and or low battery
  • Fire release input enables the power distribution box to release all attached devices (access doors) when fire alarm is activated to enable easy egress out of a locked facility Integrated bundle offer 10 amps of power, 1 amp 12VDC or .500 24VDC per output.
  • Notification upon AC Failure or Low Battery
  • Field upgradeable from 4 outputs to 8 outputs with purchase of Upgrade Power Distribution Kit.
  • Temperature rating enables the power distribution box to be installed in cold or hot zones such as utility closets that are poorly ventilated

In The Box:

  • Power Supply
  • Enclosure Cabinet

NOTE: If additional Power Distribution Module is included, output amperage remains the same at 2 Amps total.

Tech Specs

  • Part Number: PS124D-02A4
  • Input Voltage: 3, 13.5, or 24 VDC
  • Output Amperage: 2 Amps
  • Number of Outputs: 6
  • Lock – Aux: 4; Selectable 12 or 24 VDC per each output – auto resetting function
  • Panel Power: 2 – 12 VDC – Non fused
  • Battery Charging: 1=13.5 VDC Batteries Charge up to 2–12 VDC 7 AMP
  • Fire Alarm Input: Yes
  • LED Indicators: Battery, Fire Release Status, Low Battery, Output voltage (12 or 24 VDC) per individual output/ output power
  • Add-on Board Option: Yes – Mounting space in housing to add 1 additional power module. Amperage output remains the same: 2 Amps total
  • Approvals: UL 294, ROHS, DOE, Level 6 Efficiency
