Linear e3 Stand-Alone Access Node, No Screen or Keypad


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm –

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

Add the Linear e3 Stand-Alone Access Node (No Screen or Keypad) to your EN system to add two additional doors (e.g. to poolhouse or community house) within the same property. The EXN comes with a metal housing, 6 knockouts, hardware, provisions for mounting, and a keyed lock.

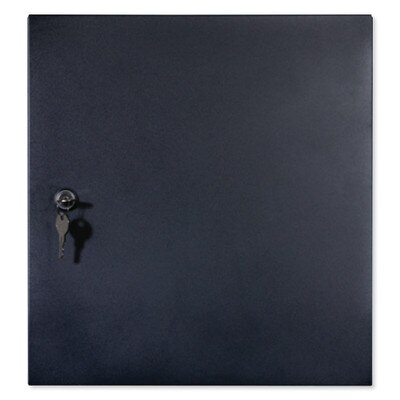

Housed in a locked, rugged stainless steel faced enclosure, the cabinet is secured with a mechanical tamper switch. The four relay outputs can be programmed to control electric door strikes, magnetic locks, door and gate operators, or barrier gates. Complete access control event logging, access time restriction, access location restriction, and administration functions are also available to manage the installation.

The EXN is network ready. Multiple units can be interconnected through a LAN connection. The EXN can be used in mixed networks with other compatible access control products: EN-2A4/EN-2M4, EN-2A7/EN-2M7, and EN-2A10/EN-2M10.

Two inputs are available for connection of 26, 30, or 31‑bit Wiegand devices (card readers, etc.). Each reader input supports connecting an "in" reader and an "out" reader. One input can be configured for PBUS operation for connection to legacy Linear brand remote access PBUS accessories.

In The Box:

  • Stand-Alone Access Node
  • Hardware
  • Mounting Supplies
  • Keyed Lock
  • Manual

NOTE: The EXN is for indoor use only. DO NOT mount outside.

Tech Specs

  • Part Number: EN-EXN
  • Voltage: 11-13 Volts DC
  • Current: 750 mA
    • Outputs: Four Relays
    • Form "C" 3 Amps @ 24 Volts maximum
  • Inputs:
    • Two DSM door position inputs
    • Two REX exit request inputs
    • Two AUX auxiliary inputs
    • Four WIEGAND reader inputs (two IN, two OUT)
    • One PBUS input (supports up to six PBUS devices)
  • Network: LAN or RS-485 network
  • Temperature: -22° F to 149° F (-30°C to 65°C)
  • Humidity: 5% to 95% non-condensing
  • Case Dimensions: 13(W) x 14(H) x 3-1/12(D) inches (330 x 356 x 90 mm)
  • Credentials: FCC
  • Warranty: 2 Year
