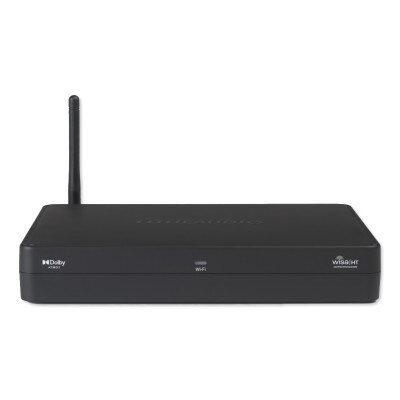

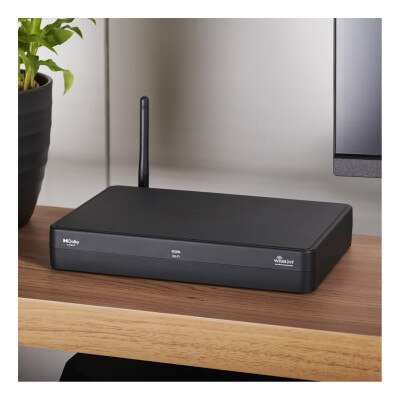

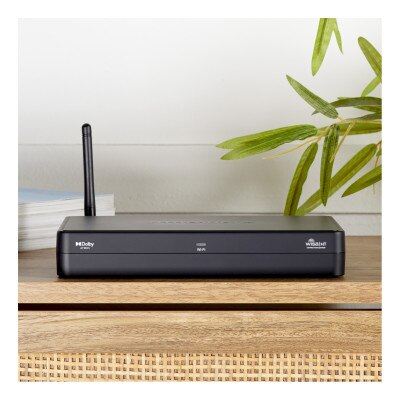

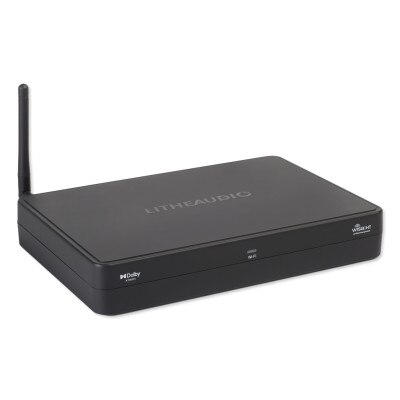

Lithe Audio WiSA Cinema Hub

$1,107.00
SKU: LI06531

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The revolutionary Lithe Audio WiSA Cinema Hub is a cutting-edge digital audio/video receiver hub that delivers high-fidelity sound with near zero latency to wirelessly connected Wi-Fi speakers. Powered by WiSA (Wireless Streaming Audio) technology, the Cinema Hub delivers flawless sound synchronization and immersive audio quality to any WiSA-certified wireless speakers without the installation limitations of cables and speaker wiring. The WiSA wireless audio specification allows for up to eight (8) channels of uncompressed 24-bit, 96KHz audio with an extremely low 2.6ms of latency and less than 1 microsecond of synchronization, meaning no delayed lip sync or echoing between speakers and your TV or digital projector.

The Cinema Hub supports up to 6 physical inputs from HDMI, optical, and RCA connected audio sources. Take advantage of both wireless and physical audio sources including your Apple TV or video game console, Bluetooth or AirPlay 2 connected smart device, to your existing digital turntable or HiFi system. The Lithe Audio WiSA Cinema Hub is fully scalable from single zone stereo to in-home cinema setups. Whether you are building a 5.1.2 or 7.1 Dolby Atmos configuration with in-ceiling and surround speakers, or upgrading a standard outdoor 2.0 stereo setup, the Cinema Hub will provide the highest quality audio experience possible.

  • Enhance your home audio configuration with a digital AVR capable of delivering top quality sound with low latency from nearly any audio source
  • Delivers up to 24bits at 48kHz/96kHz at 2.6ms of latency, preventing audio delay
  • Sends wired audio sources from HDMI-eARC, HDMI-ARC, RCA and optical inputs to connected wireless speakers
  • Supports 2.0 stereo to 5.1.2 Dolby Atmos, bringing your movies and music to life with breathtaking clarity
  • WiSA Technology offers cinema experience with no latency and compatibility with any WiSA HT certified speakers
  • Enjoy wireless streaming support for any smart device compatible with AirPlay 2, Chromecast, Bluetooth, and Spotify Connect
  • Fine-tune your audio experience with the Lithe Audio App and enjoy the ease of selecting sources, adjusting volume, and more with the sleek aluminum remote control

Why You Would Use This Product:

The Lithe Audio WiSA Cinema Hub is ideal for anyone looking to enhance their home entertainment system to reach the highest possible audio quality and enjoy Dolby Audio or Dolby Atmos formats. For home theater enthusiasts, the ultra-low latency, high-definition audio, and Dolby Atmos support ensure that your movies and shows have crystal clear, synchronized sound. In commercial applications such as in offices or retail spaces, this module enables you to provide background music or announcements with ease, all controlled from a central device. The wide compatibility with WiSA certified speakers and physical inputs allows you to build and customize your home audio as you see fit, or include the Cinema Hub with little effort. Whether you're outfitting a cozy den or a spacious living area, our systems flex to fit rooms of any size and shape, promising an immersive cinematic experience that's tailored to your space and preferences.

In The Box:

  • Lithe Audio WiSA Cinema Hub
  • Antenna
  • Remote Control
  • Power Supply (with EU / US / UK Plug)
  • 2 x AAA Batteries
  • Allen Wrench Key

Notes:

  • Compatible with Lithe Audio and other WiSA HT certified speakers.
  • Requires an Internet connection.
  • IF TV HAS HDMI-eARC: a 2.0 HDMI cable is required to support 4K video and HDR.
  • IF TV HAS HDMI-ARC ONLY: HDMI version 1.4 or newer is sufficient.

Tech Specs

  • Part Number: 06531
  • EAN: 5060544557366
  • Supported Audio Formats:
    • Supports 2.0 / 2.1 / 3.0 / 3.1 / 5.1 / 7.1 / 5.1.2 speaker configurations
    • Dolby Digital
    • Dolby Digital+ / Dolby TrueHD
    • Dolby Atmos and Dolby Atmos Virtual
    • PCM Multi-Channel
  • Wireless Connectivity:
    • Wi-Fi Dual Band (2.4GHz / 5GHz)
    • Bluetooth
    • Apple AirPlay 2
    • Google Chromecast
    • Spotify Connect
    • DLNA (Digital Living Network Alliance) certified
  • Physical Inputs:
    • 3x HDMI
    • 2x Optical
    • 1x RCA Phono
    • 1x Ethernet (for network connection)
  • Outputs: HDMI ARC/eARC
  • Network Connection:
    • RJ45 Ethernet
    • Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac)
  • WiSA: 24-bit / 48KHz or 24-bit / 96KHz
  • Coax / Digital Input: Up to 24-bit / 192KHz
  • Multiple Speakers Per Zone: Up to 24
  • Audio Bit Rate: 24 bits
  • Sample Rate: 8Khz
  • Wireless Audio Latency: 2.6ms
  • Hub to Speaker Distance: Up to 65 feet (20 meters) line of sight
  • Power Supply: DC 110 – 240V, 50 / 60Hz
  • Power Input Supply: 100 – 240V, 50/60Hz / 2.5A
  • Dimensions: (18.3 H X 6.7 W X 3.9 D in) (465 H X 170 W X 100 D mm)
  • Weight: 8.1lbs (0.5kg)
  • Warranty: 2-Year Limited
