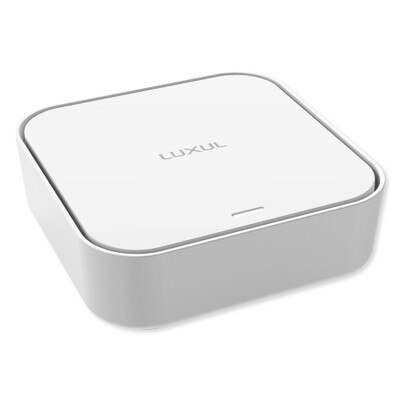

Luxul Epic Mesh Node Kit


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Wireless Mesh Kit combines the power of a Luxul wireless product with the ease of retail networking solutions. This kit can be used as a small mesh network, or as an additional/replacement nodes to extend an existing mesh network. Just plug them into an available outlet and use the Luxul Easy Setup App on your iOS or Android smartphone to define how the devices will be used: router or node. The powerful 4x4 5GHz dedicated backhaul channel ensures strong connectivity to deliver fast internet anywhere in the home.

  • ProWatch+ meaning you can remotely monitor and manage all connected devices on the network
  • 4x4 backhaul which allows for better communication between nodes, meaning less network congestion and faster WiFi speeds
  • 8 SSIDs that can be individually named to provide you with options for setting up the network
  • Lifetime tech support
  • 3-Year Limited Warranty

In The Box:

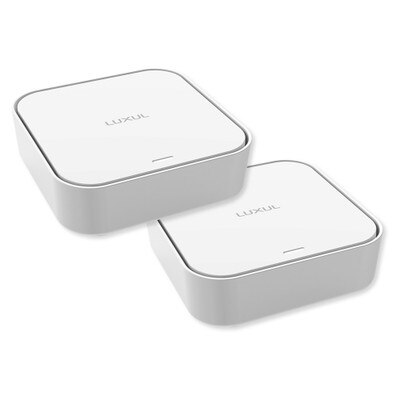

  • 2 x Epic Mesh Nodes

Tech Specs

  • Part Number: MK-10
  • UPC: 655003921366
  • Standards: IEEE.802.11b/g/n, 802.11a/n/ac

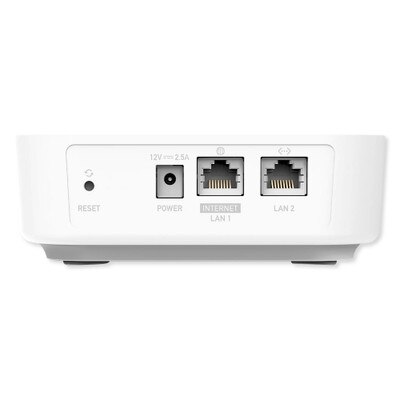

  • Number of ports: Two 10/100/1000M ports; Gigabit WAN to LAN speeds
  • Antenna: Designed for horizontal placement
    • 4 5GHz antennas
    • 2 dual-band antennas
    • 1 Bluetooth antenna
  • Button: Reboot or Reset
  • LEDs: 1 multi-function single LED (can be turned off/on via user interface)
  • Power Supply: External – 12 VDC, 2.5A
  • Power Consumption: Max Power Consumption: 30W
  • Button: Reboot or Reset
  • Design: Tri-band with dedicated 4x4 5GHz backhaul
  • SSID Capability: Supports up to 4 SSIDs per band for a total of 8 SSIDs
  • Frequency: Concurrent 2.4GHz and 5GHz with Beamforming for client and backhaul
  • Transmitter Power:
    • 2.4GHz-28dB/630mW
    • 5GHz-28.7dB/741mW
  • Wired Speed:
    • LAN-LAN: 1 Gbps
    • WAN-LAN: 1 Gbps
  • Wireless Speed:
    • 2.4GHz: Up to 600 Mbps
    • 5GHz: Up to 1200 Mbps
  • Wireless Security: Open, WPA, WPA2, WPA/WPA2 mixed
  • Other Functions and Features:
    • WPA encryption, DHCP, IPV6, NAT, VPN passthrough, UPnP, WAN static IP, WAN PPPoE, WAN VLAN tagging, static leases, port forwarding, DMZ, wireless guest network, band steering, client roaming, airtime fairness, adaptive path selection
    • Backup & Restore Configurations
    • Firmware Upgradeable via Browser
    • MU-MIMO with Beamforming
    • Guest network
  • Operating Temperature: 32°F to 95°F (0°C to 35°C)
  • Operating Humidity: 10% – 90% non-condensing
  • Dimensions: 5.25 (L) x 5.25 (W) x 2 (H) inches (133.4 x 133.4 x 50.08 mm)
  • Weight: 1lb
  • Certification: FCC, IC, RCM, NCC, RoHS, CB Report
  • Warranty: 3-Year Limited

Product Docs
