Luxul Whole Home Wi-Fi System with AC1200 Gigabit Router & Access Point
Product Description

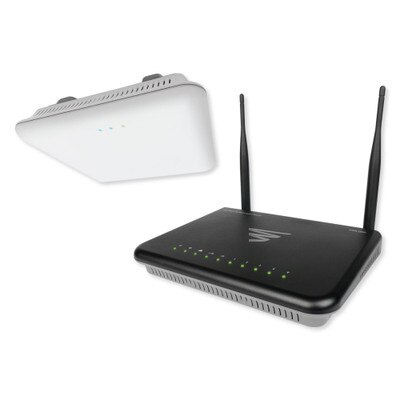

The WS-80 wireless AP and router package includes everything you need to effortlessly and cost-effectively deploy a basic and reliable wireless AV network. The package includes one XWR-1200 dual-band wireless AC1200 router and one XAP-810 High-Power dual-band AC1200 access point. The XWR-1200 features high performance 2x2 MIMO technology and has a built-in wireless AV controller with Luxul's exclusive Roam Assist™ capability. The low-profile, simple-to-install XAP-810 implements dual-band beamforming AV technology for delivering wireless AV coverage to smaller spaces.
In The Box:
- XWR-1200 Wireless Router
- XAP-810 Access Point
- PoE Injector
- Mounting Kits
- Power Supply
- 2 x Quick Install Guide
Tech Specs
- Part Number: WS-80
- UPC: 655003921021
- Warranty: 3-Year Limited
Dual-Band Wireless Router (XWR-1200)
- Standards Compliance: 2.4GHz: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b; 5.xGHz: IEEE 802.11n, IEEE 802.11a; 802.11ac
- Interface:
- One 10/100/1000M WAN port
- Four 10/100/1000M LAN ports
- One USB 2.0 port
- Antenna: Two dual-band detachable omni-directional antennas
- Power Input: 12V/2A DC power jack
- Max Power Consumption: 18W
- Dimensions: 8.1 x 5.6 x 1.5 inches (206 x 142 x 38mm)
- LEDs: Power, SYS, USB, WAN, LAN (4), 5GHz, 2.4GHz
- Frequency: Concurrent 2.4GHz and 5GHz
- Wireless Speed:
- 2.4GHz: 600Mbps;
- 5GHz: 1.3Gbps
- Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2
- Warranty: 3-Year Limited
Access Point (XAP-810)
- Standards Compliance: IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at
- Interface: One 10/100/1000M port
- Antenna: Two dual-band antennas
- Power: PoE+ 802.3at (injector included)
- Power: 12W Avg.
- Max Power Consumption: 17W
- Environmental Temperatures: 32°F to 122°F (0°C to 50°C)
- Dimensions: 6.25 x 6.25 x 1.75 inches (158.75 x 158.75 x 44.45mm)
- LEDs: Power, 2.4GHz, 5GHz (Can be turned Off/On Via User Interface
- Frequency: Concurrent 2.4GHz & 5GHz
- Wireless Speed:
- 2.4GHz: 300Mbps
- 5GHz: 866Mbps
- Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2
- Warranty: 3-Year Limited
