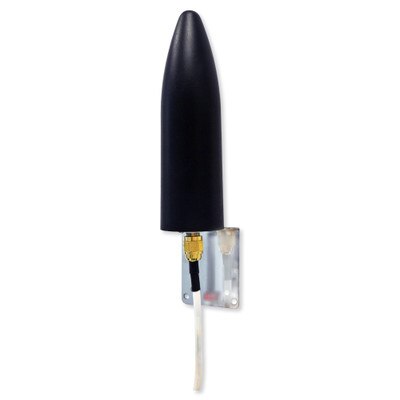

Napco StarLink Antenna Extension Kit

The SLE-ANTEXT dual-band indoor/outdoor antenna provides omnidirectional coverage in cellular frequencies. When the minimum signal strength required by the Napco StarLink radio installation instructions cannot be met, the StarLink SLEANTEXT external antenna may be used to increase the signal strength. The SLE-ANTEXT is intended for use with StarLink SLE Series and Star-Link SLE Fire Series UL Listed communicators. The SLE-ANTEXT is designed to minimize loss and maximize gain (you can likely expect a gain of 3dB). Although we recommend using the SLEANTEXT, any similar cell phone external antenna may be used without violating the UL Listing of the SLE radio (always keep the length of the coax cable as short as possible to minimize signal loss). Do not alter or add coaxial cable, except for mounting the antenna on a large metal ground plane. Do not place antenna within 4 feet of other large metal objects.

• Provides omnidirectional coverage in cellular frequencies
• Magnetic base with a protective coating that facilitates stable installation without damage to the mounting surface
• Antenna connected to 15 feet (4.57m) of double-shielded low-loss cable with an SMA
• (SubMiniature A) male connector
• Supplied mounting bracket provides flat metal ground plane
• Designed for indoor and/or outdoor mounting locations
• Enhances transmission and reception signals within the 824-894MHz and 1850-1990MHz bands

In The Box:

• StarLink Antenna
• Coaxial Cable
• Mounting Hardware
• SMA M to MINI-UHF F Adaptor
• Manual

NOTES: DO NOT alter or add coaxial cable, except for mounting the antenna on a large metal ground plane. DO NOT place antenna within 4 feet of other large metal objects.
