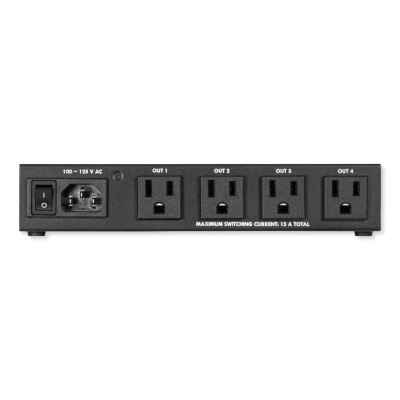

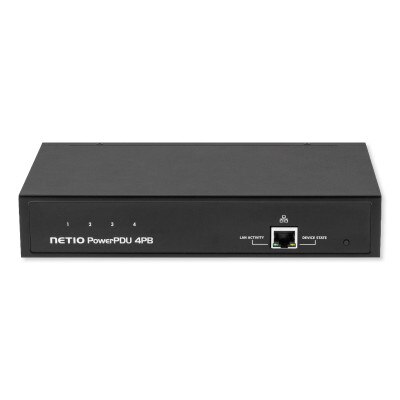

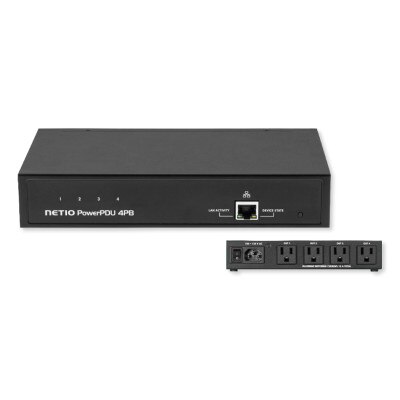

NETIO PowerPDU 4PB Smart Power Distribution Unit, 4 NEMA 5-15R Outlets

The NETIO PowerPDU 4PB Smart Power Distribution Unit, 4 NEMA 5-15R Outlets is a smart power distribution unit designed to provide precise electrical metering and remote On/Off/Reset control of four individual power outlets plus one digital input. It allows users to remotely monitor power consumption of devices plugged into each outlet over LAN or cloud networks, making it an ideal solution for energy-efficient and automated power management. Each outlet is equipped with full metering capabilities that measure voltage, current, power, and energy consumption, delivering detailed analytics for effective power usage tracking.

Users control their NETIO PDU's through the NETIO Cloud and the NETIO Mobile 2 app which provide secure management and remote accessibility. From the NETIO Mobile 2 app or NETIO Cloud web portal, PowerPDUs can utilize extensive scheduling functions, including weekly timers and configurable power-up delays to allow for fully automated power cycling sequences. With support for multiple communication protocols such as HTTP(S) JSON, SNMP, Modbus TCP, and MQTT-flex, users can easily integrate this PDU into existing building automation or monitoring systems. Firmware can be upgraded via the NETIO Mobile 2 or NETIO Cloud web interface, ensuring ongoing enhancements and security.

• Four metered and switched NEMA 5-15R outlets allow individual On/Off/Reset control and energy monitoring
• Configurable power-up delay sequencing and built-in watchdog/ping reboot enhances reliability
• Zero Current Switching (ZCS) technology that prevents relay wear and safely handles high inrush currents from demanding equipment
• Receive alerts and issue On/Off/Reset commands via the NETIO Mobile 2 app and secure NETIO Cloud web portal
• Open API (JSON/HTTP, Modbus/TCP, SNMP, MQTT, Telnet) allows seamless third-party system integration
• AV control drivers facilitate easy integration into Crestron, Control4, RTI, Savant, and other automation systems
• Compact 1U rack-mount design suitable for IT, AV, and industrial applications

Why You Would Use This Product:

The NETIO PowerPDU is well-suited for both residential and commercial users who require efficient, remote power management and energy monitoring. For commercial environments such as server rooms, data centers, or retail installations, it ensures orderly power sequencing, remote reboot of devices, and integration with building management systems to optimize energy usage and reduce operational costs.

This NETIO PDU is compatible with the NETIO Mobile 2 app (iOS and Android) and NETIO Cloud service. With the app, you can discover devices on your local Internet network, switch individual outlets on/off or reset them, view real-time power consumption metrics per output, configure scheduling, and manage multiple PDUs through NETIO Cloud. NETIO Cloud is a paid subscription service that provides users remote monitoring and control applications of their personal or business infrastructure from anywhere with an Internet connection. This mobile integration enhances user experience by providing an intuitive interface for power monitoring and control on the go.

In The Box:

• NETIO PowerPDU 4PB Smart PDU
• Power Cable
• Manual

Notes:

• Requires wired LAN connection; wireless functionality is not supported.
• NETIO Cloud service requires subscription and internet access; available separately.
• Maximum outlet capacity: up to 15 A per outlet (UL rating 12 A) on 100–125 V lines.
• For high-inrush devices, enable ZVS to protect relays and reduce electrical stress.
• Professional installation is recommended for rack integration and optimal performance.
