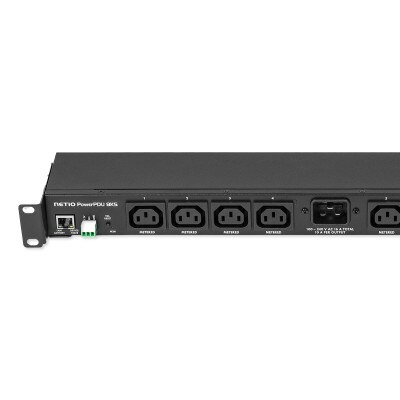

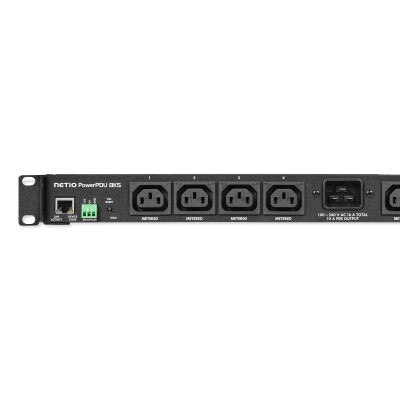

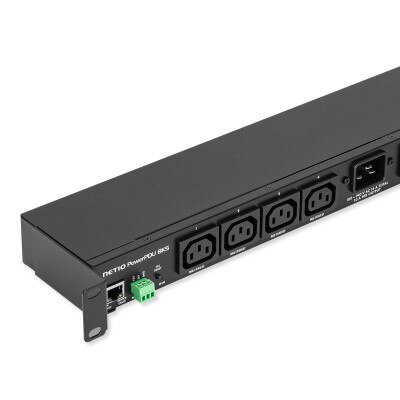

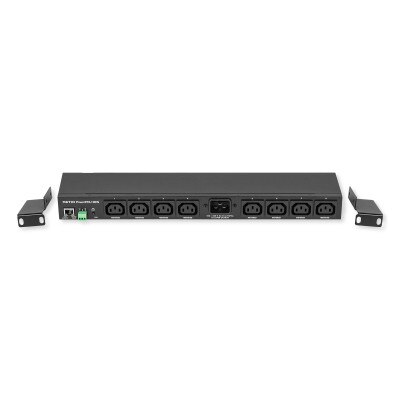

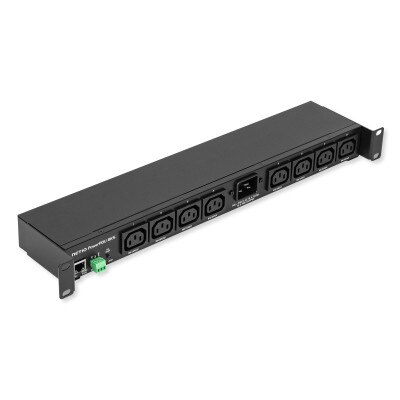

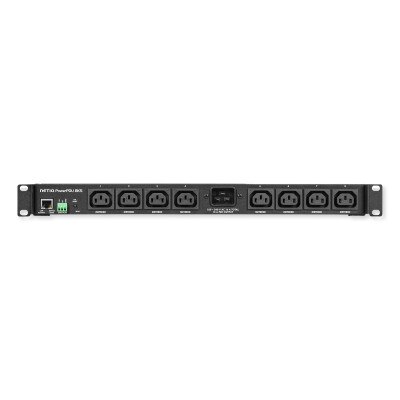

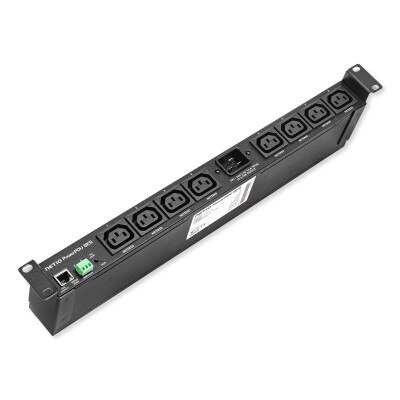

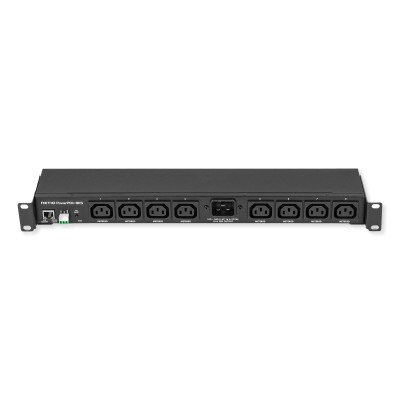

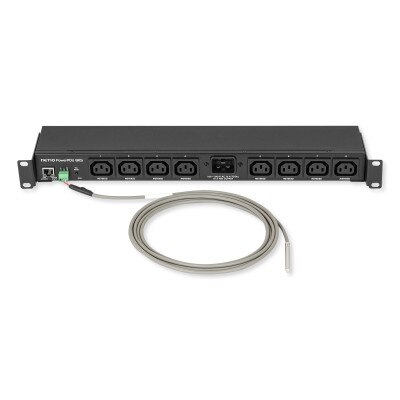

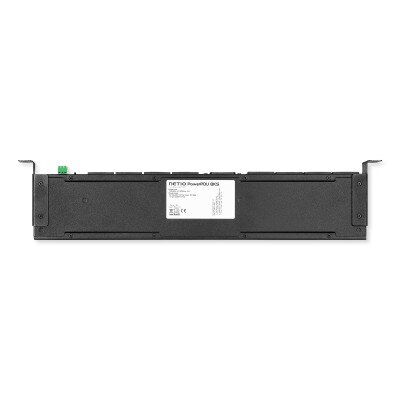

NETIO PowerPDU 8KS Smart Power Distribution Unit, 8 IEC-320 C13 Outputs

The NETIO PowerPDU 8KS Smart Power Distribution Unit, 8 IEC-320 C13 Outputs provide precise remote control and comprehensive electrical metering for eight individual power outlets, plus one digital input, making it an essential tool for advanced power management in professional and commercial environments. Each outlet is equipped with full metering capabilities that measure voltage, current, power, and energy consumption, delivering detailed analytics to a mobile device or remote computer for effective power usage tracking and safe power cycling of plugged in devices. Additionally, the digital input provides additional control over selected outlets when connected to an external switch or temperature sensor that triggers under preprogrammed criteria. The unit includes a NETIO T1 temperature sensor for environmental monitoring and automated thermostat control when programmed into an automated scene or routine.

The PowerPDU 8KS supports a wide range of industry-standard communication protocols such as SNMP, Modbus TCP, MQTT-flex, and HTTP(S) JSON API, allowing flexible integration into diverse building management and IoT systems. Ready-made drivers for popular AV and automation systems like Crestron and Control4 further streamline integration into professional AV environments.

• Eight individually controllable IEC-320 C13 power outlets with full electrical metering
• Digital Input (DI) port supports dry contact triggers or external sensor integration
• Included NETIO T1 temperature sensor provides additional conditional triggers for outlet control or warning of unsafe conditions
• Configurable power-up delay sequencing and built-in watchdog/ping reboot enhances reliability
• Secure remote management, configurable weekly scheduler, power-up delay, and power-up state for automated power management via NETIO Mobile 2 app or NETIO Cloud
• Support for SNMP, Modbus TCP, MQTT-flex, HTTP(S) JSON API for versatile integration
• Open API (JSON/HTTP, Modbus/TCP, SNMP, MQTT, Telnet) allows seamless third-party system integration
• AV control drivers facilitate easy integration into Crestron, Control4, RTI, Savant, and other automation systems
• Firmware upgradable via web interface for easy maintenance and updates
• Compact 1U rack-mount design suitable for IT, AV, and industrial applications

Why You Would Use This Product:

The NETIO PowerPDU 8KS is ideal for users who require sophisticated, remote-controlled power management and monitoring. In data centers and IT environments, it enables orderly reboot sequences and remote power cycling, reducing downtime and improving maintenance efficiency. AV professionals can leverage its integration capabilities to remotely manage power for audio and video equipment in theaters, conference rooms, and studios. Facility managers benefit from the digital input thermostat feature to automate cooling or heating devices, optimizing environmental conditions and protecting sensitive hardware. Additionally, its compatibility with cloud and mobile platforms allows seamless multi-site management, enhancing operational flexibility and control.

This NETIO PDU is compatible with the NETIO Mobile 2 app (iOS and Android) and NETIO Cloud service. With the app, you can discover devices on your local Internet network, switch individual outlets on/off or reset them, view real-time power consumption metrics per output, configure scheduling, and manage multiple PDUs through NETIO Cloud. NETIO Cloud is a paid subscription service that provides users remote monitoring and control applications of their personal or business infrastructure from anywhere with an Internet connection. This mobile integration enhances user experience by providing an intuitive interface for power monitoring and control on the go.

In The Box:

• NETIO PowerPDU 8KS Smart PDU
• T1 Temperature Sensor
• Power Cable
• Quick Installation Guide (QIG)

Notes:

• Requires a wired Ethernet LAN connection; no wireless (Wi-Fi/Bluetooth) built-in.
• NETIO Cloud access requires a separate subscription.
• Ensure proper outlet load management; each outlet supports up to 12 A (UL rating) or higher depending on regional specifications.
• Use Zero-Current Switching (ZCS) when connecting high inrush-load devices to reduce relay stress.
• Digital Input (DI) functions require a dry contact switch or compatible NETIO T1 sensor, sold separately.
• Professional installation is recommended for rack deployment and seamless integration with AV or IT control systems.
