OEM Systems ArchiTech Kevlar 5.25" In-Wall Speakers, 2-Way (Pair) (Open Box)

$43.00 $78.78

2 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

The Kevlar material used in the ArchiTech Kevlar series is an exceptional choice for high performance woofers. Its incredible strength enables low distortion music reproduction, while its lightness provides great detail and musicality. And it is amazingly durable for long life and environmental stability. Kevlar is 5 times as strong as steel of the same weight.

These unique properties have enabled Kevlar to become a favorite material for applications as varied as bullet-proof vests, automotive parts, ropes for the Mars Pathfinder mission – and for the ArchiTech Series – cones for superb woofers.

The ArchiTech Kevlar Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.

  • Woven Kevlar woofers with butyl rubber surrounds
  • 12 dB/octave crossover
  • Phase plug pole piece extensions
  • High temperature Polyimide voice coils
  • Polyswitch overdrive protection
  • Industry Leading Superior Clamp-ring Mounting System
  • Frame and Grilles may be painted to match mounting surface

Tech Specs

  • Model Number: SE-694KE – 5-1/4" 2-way Rect. In-Wall Loudspeaker
  • Frequency Response: 50Hz – 20kHz ±3 dB
  • Power Handling: 30 watts nom. 60 max.
  • Sensitivity: 91dB 1 watt / 1 meter
  • Tweeter: 1" pivoting textile soft dome tweeter

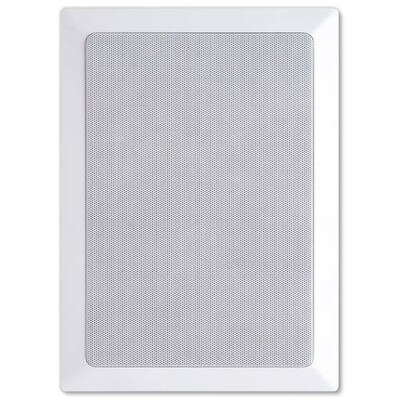

  • Grille: Perforated Metal Grille: MG-6914
  • Impedance: 8 ohms nominal
  • Pre-construction Bracket: RI-6914
  • Overall Dimensions: 6-5/8(W) x 9 -1/4(H) inches
  • Cut-out Dimensions: 5-9/16(W) x 8-1/4(H) x 2-3/8(D) inches
  • Warranty: Lifetime Limited
