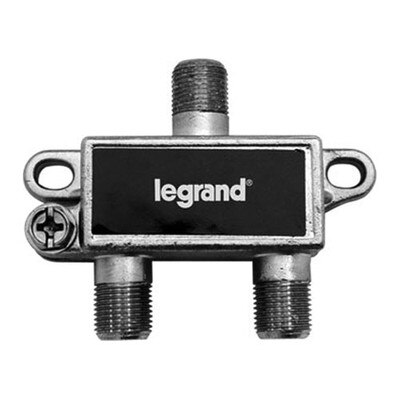

On-Q/Legrand 2-Way Digital Cable Splitter with Coax Network Support


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

This professional-grade digital cable splitter distributes HDTV Antenna/Digital Cable and coax data network signals to two devices. Ideal for MoCA-capable networks.

  • Exceeds the performance standards set by major cable providers
  • Compatible with existing and future networks such as MoCA, VoIP, and DOCSIS 3.0
  • 6kV Surge Protection on all ports
  • Coax networking adapters and splitters are not compatible with satellite television systems

Tech Specs

  • Cable Type: Coaxial
  • Color: Black
  • Connection Type: ANSI/SCTE 01 Compliant ECT F-port
  • Type: Signal Splitter
  • Housing Material: Zinc Alloy diecast
  • Surge Protected: 6 kV ring wave surges per IEEE specification C62.41 Category A3
  • Frequency: 5 to 1525 MHz
  • Ohm Value: 75 Ohm Nominal impedance
  • Operating Temperature: -40 to 140 degrees F (-40 to 60 degrees C)
  • Supported Standards: Exceeds ANSI/SCTE 143 specifications for corrosion, 1000 hours
  • Diameter: 2.3(L) x 1.8(W) x 0.64(D) inches (59.6 x 45.1 x 16.3 mm)
