On-Q/Legrand Cat5 Color Ball Camera

Item # OQCM5002x

Select an option for availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Available in the new Studio design, the ball camera is an inconspicuous way to monitor a nursery, patio, or front door. Although it delivers crisp color video, it's also optimized for low light conditions to enable the best possible pictures in all situations.


  • One-wire installation – power, video and audio share one Category 5 cable to camera
  • Includes both wall and ceiling mounting hardware
  • Designed for both indoor and outdoor use
  • Automatic color by day / b&w in low light conditions
  • Designed to match Selective Call and 7" LCD Display aesthetics
  • Optional microphone for audio monitoring

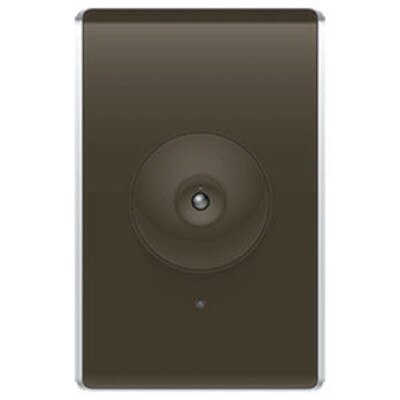

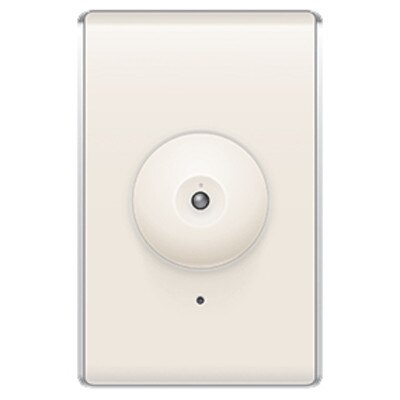

Pick a color: White, Light Almond or Brown

  • Storage Temperature: -55° to 75°C
  • Humidity: Up to 95% RH (Non Condensing)
  • Material: ABS Plastic
  • Operating Temperature Celcius: 0° to 55°C
  • Power Requirements: +24Vdc, ±1.5Vdc, 0.75A Differential Driven; +12VDC .75A Single Ended mode (via Camera Module)
  • Mounting: Via Standard NEMA 1-gang Wall Box
  • Cat5 Cable Rating: CAT 5e UTP, 4 pair Solid Conductor (24 AWG)
  • Connection Method: Single RJ45
