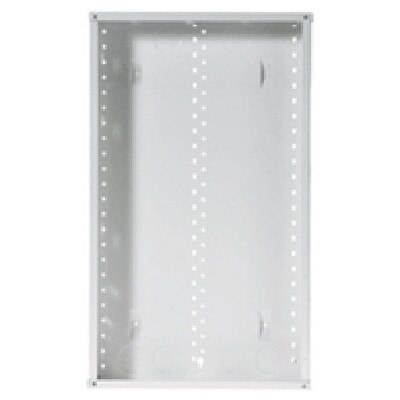

On-Q/Legrand Enclosure, No Cover, 20" (Open Box)
Product Description
This enclosure features universal On-Q bay-style mounting holes that are compatible with all bay-style modules. It also includes larger top openings that make pulling wire easier as well as additional knockouts, more side lances, and side tabs for more flexible mounting.
- Flanged covers hide drywall openings
- Drywall depth indicators
- Flush and surface installation
- Mounting tabs provide correct flush-mount position for standard installations
- Patented mounting system offers versatile module mounting options
- Includes self-adhesive cable identification table
- Made in the USA
Tech Specs
- Part Number: EN2080
- UPC: 804428023104
- Color: Glossy White
- Finish: Powder Coat
- Type: Enclosure
- Installation Location: In-Wall
- Humidity: 90 percent Relative Humidity (Non-Condensing)
- Material: CRS
- Mounting: Surface or Flush
- Operating Temperature: 32 to 122° F (0 to 50° C)
- Dimensions: 14.1(W) x 14.1(H) x 3.7(D) inches (35.8 x 35.8 x 9.4 cm)
- Thickness: 20 Gauge
- CSA Listing Info: CSA-C22.2 No. 144.1 (2006), CAN/CSA-C22.2 No. 182.4-1990
- CSA Standard: Yes
- cULus: Yes
- UL Listing No: ANSI/UL 1863, ANSI/UL 985, ULC-S545, ANSI/UL 1023
- UL Standard: Yes
- UN SPS C: 43223306
