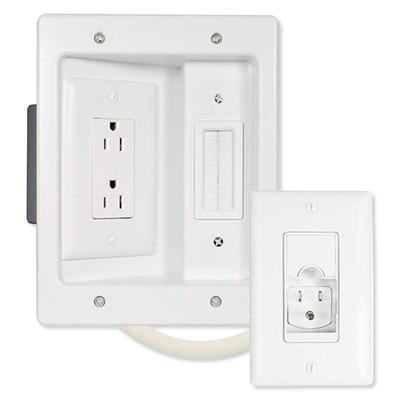

On-Q/Legrand In-Wall TV Power and Cable Management Kit, Pre-Wired


Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Enhance the look of your TV room by hiding power and AV cables inside the wall without modifying electrical wiring with the pre-wired On-Q/Legrand Flat Screen TV Pro Power and Cable Management Kit. This kit includes everything needed to extend power to wall-mount TV installations while providing the ultimate flexibility with the innovative decorator based power inlet strap and the recessed box with duplex power receptacle.

  • Pre-wired kit extends power to a wall mount TV without modifying the homes existing electrical wiring
  • Tamper Resistant receptacle powers multiple devices such as a TV, sound bar or streaming players
  • Recessed receptacle supports almost any type of power plug including right angles and wall warts
  • Unique decorator based power inlet strap provides flexible project support for ganging other AV connections
  • Hides both power and AV cables inside the wall for a clean, professional installation

In The Box:

  • Power Outlet Module (with 6 ft pre-wired cord)
  • Power Input Module
  • Drywall Bracket
  • 6 ft Power Cord
  • Cut-Out Template

Tech Specs

  • Part Number: CPT306W-V1
  • Color: White
  • Amps: 15A
  • Drywall Hole Size: Top: 5.38"W x 7.13"H Bottom: 2.25"W x 3.75"H
  • Material: Plastic
  • Minimum Depth Requirement (US): 3.75"
  • Mounting: Wall Mount
  • Storage Temperature: 32°F to 122°F
  • Supported Standards: NEMA 5-15R
  • Volts (AC): 125 VAC
  • Wire Gauge: 14-2 AWG with Ground In-Wall Rated
  • Receptacle Type: Decorator Receptacle
  • Number Of Outlets: 2
  • Number of Ports: 1
  • Installation Destination: Indoor – Not intended for Fire-Rated walls
  • Mounting Points: In-Wall
  • Mounting Hardware Included: Yes
  • Cord Length: 6 Feet
  • Dimensions: 10.25 x 4.1 x 8.75 inches (261 x 104 x 222 mm)
  • Certifications:
    • ETL Listing No: Conforms to: UL STDs 514C & 498
    • ETL Listed: Yes
    • UL Listing No: UL514C and UL-498
  • Warranty: 2 Years
