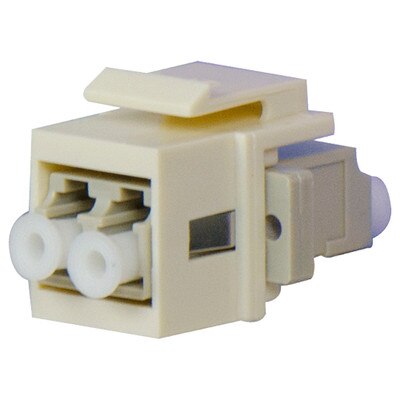

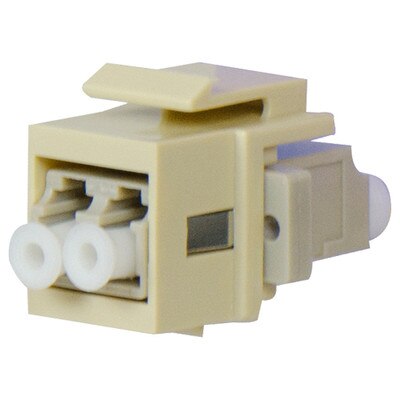

On-Q/Legrand LC Multimode Fiber Optic Keystone Snap-In Connector
Product Description
This LC multimode fiber female-to-female coupler allows users to add fiber optic cable support to their structured wiring systems. Quick and easy to install, this coupler fits in faceplates and blank patch panels.
- Designed with phosphor bronze sleeves
- Feed-through design
- Perfect for keystone patch panel application
Tech Specs
- Part Number: WP1210
- Finish: Smooth
- Equipment Type: Multimode Fiber Optic Connector
- Service Life: 500 matings
- Housing Material: Plastic ABS UL94VO
- Connection Method: Phosphor Bronze sleeve
- Typical Insertion Loss: Multimode: 0.20~0.30@IL avg (dB @ 1310nm)
- Typical Return Loss: ≥55dB (typical)
- Humidity: 10 to 90 percent, RH (non-condensing)
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Supported Standards: UL, cULus, RoHS
