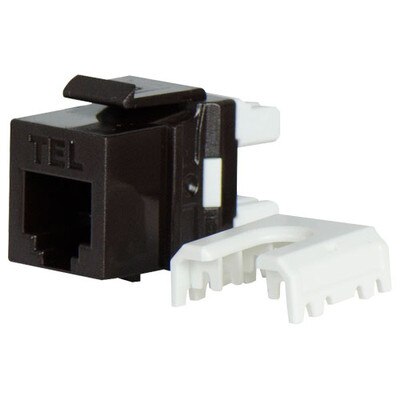

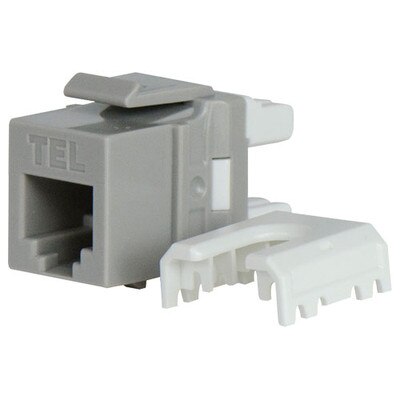

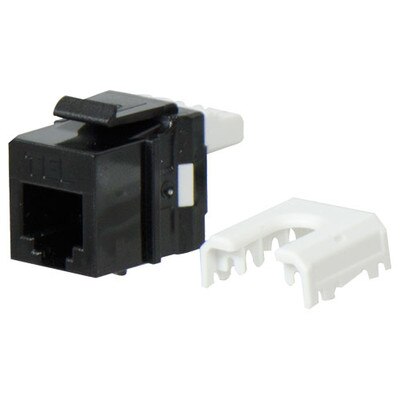

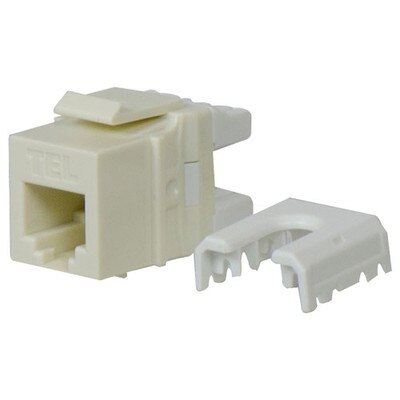

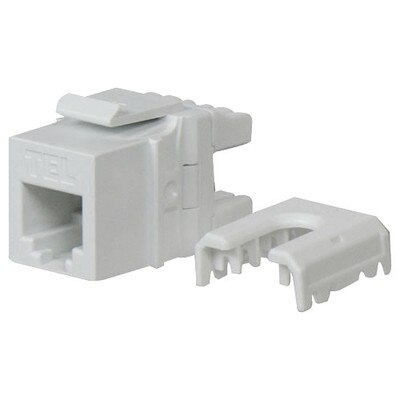

On-Q/Legrand Quick Connect RJ25 Telephone Keystone Snap-In Connector
Product Description
Part of the Quick Connect family of products, this RJ25 keystone insert supports up to three telephone lines and accepts an RJ45 plug without damage.
- Supports up to 3 telephone lines
- 50 microinches of gold on contacts
- QuickConnect termination for reduced installation time
- FCC Part 68 compliant
Tech Specs
- Part Number: WP3473
- Equipment Type: Quick Connect RJ25 6-Position, 6-Conductor Telephone Keystone Insert
- Performance Category: Cat 3
- Termination: 6P6C
- Connection Type: RJ25 Female
- Material: High Impact Flame Retardant Plastic; ABS FR15U
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Storage Temperature: -40° to 158°F (-40° to 70°C)
- Dimensions: 4.0(W) x 6.0(H) x 0.7(L) inches
- Supported Standards: CSA, cULus, RoHS
- UL Flammability Rating: UL 94V-0
