Optex FlipX Series Indoor PIR Detector, Standard Model

$16.92
SKU: OPFLXSST

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

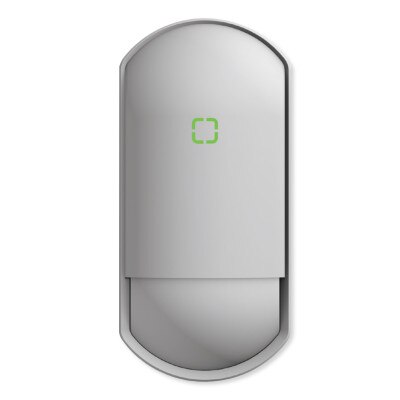

The Optex FLX-S-ST Indoor PIR Detector provides reliable and accurate infrared motion detection within indoor spaces. The FLX-S-ST Indoor PIR Detector is a part of Optex's FlipX Series of indoor PIR detectors. The FlipX Series detectors are equipped with a unique pyroelectric element and rotatable lens technology that provides highly accurate motion detection and an easily configurable design to tailor the detection pattern to suit the specific layout of your room. The detection pattern and total monitored area can be adjusted from 85° wide (40ft by 40ft) for covering large open spaces, to only 5° wide (6ft by 60ft) for covering long narrow passages or windows by removing the case and flipping the lens 180°. The Indoor PIR Detector's detection pyroelectric elements are also reshaped to better track human-sized movement and ignore movement caused by animals or random objects.

  • Passive Infrared Technology: Delivers accurate motion detection while minimizing false alarms
  • Flippable Lens: Selectable wide area with one lens by turning the lens upside down

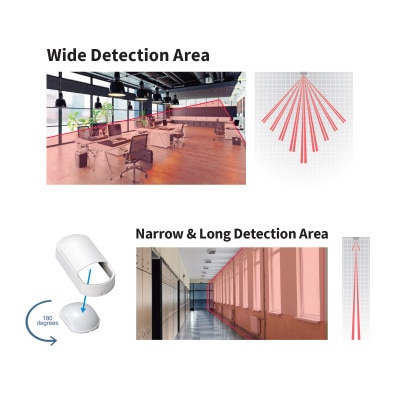

  • Adjustable Range: Wide detection zone covers 40 ft W x 40 ft L, while narrow detection zone covers 6 ft W x 60ft L
  • Human-Catch Element: Specifically designed to watch for human-sized shapes, preventing false alarms triggered by animals
  • Pet-Friendly: Designed to ignore small pets, reducing false alarms triggered by animal movement.

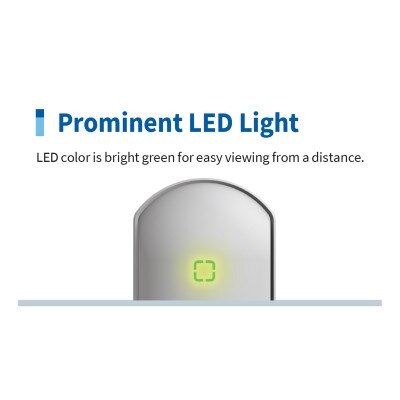

  • Prominent LED Light: LED color is bright green for easy viewing from a distance
  • PEU (Plug-In End of Line Unit) available, sold separately

Why You Would Use This Product:

The Optex FLX-S-ST Indoor PIR Detector is an extremely versatile motion detector that can fit into nearly any indoor security system game-changer for home security. Use it in your living room to detect unauthorized access, in office spaces for nighttime security, or in hallways to monitor movement throughout your home. The flexible lens design allows you to customize the detection pattern, ensuring optimal coverage without triggering false alarms. The sensor's pet-immune feature ensures you or your alarm system won't be bothered by alerts from animals moving around your property.

In The Box:

  • FLX-S-ST Indoor PIR Detector
  • Mounting Hardware
  • User Manual

NOTE: The sensor is only designed to detect an intrusion and signal an alarm or security control panel.

Tech Specs

  • Part Number: FLX-S-ST
  • UPC: 788924504391
  • Coverage:
    • Wide: 12 m (40') 85°
    • Narrow: 18 m (60') 5°
  • Alarm Period: 2.0 ± 0.5 s
  • Warm-Up Period: Approx. 60 s (LED blinks)
  • LED indicator: Green
    • [1] Warm-up
    • [2] Alarm
  • Power Input: 9.5 to 16 V DC
  • Current Draw: 12 mA max. at 12 V DC
  • Relay Output:
    • Alarm: N.C. 24 V DC 0.1 A max
    • Tamper: N.C. 24 V DC 0.1 A max. (Open when the cover is removed)
  • Operation Temperature: -4°F to 122°F (-20°C to 50°C)
  • Temperature Compensation: Digital
  • Relative Humidity: 95% RH max
  • Mounting Height: 6'7 to 9'8 inches (2.0 to 3.0 m)
  • Dimensions: 5. 11 H x 2.44 W x 2.2 D inches (130 mm H x 62 mm W x 56 mm D)
  • Weight: 4.20 oz (120 g)
  • Warranty: 5-Year Limited
