Optex iVision+ Connect Door Station & Mobile Station Bundle


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

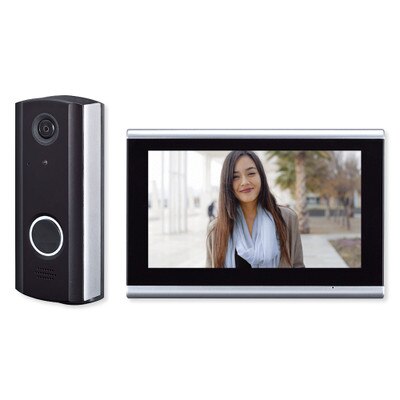

The Optex iVision+ Connect Door Station & Mobile Station Bundle combines convenience, connectivity, and communication all into one battery-powered, easy to install bundle that functions with or without an ISP connection. Included is a door station and mobile station that allow you to answer your door remotely. Using the OPTEX Vision app, you'll be able to expand your system with smartphones, tablets, and additional mobile stations. Easy to deploy, flexible, and enhanced with extended range (from existing Wi-Fi networks), the iVision+ Connect is an ideal video intercom system for office environments, retail stores, and other commercial, or even residential settings.

  • Includes 1 door station and 1 mobile station
  • Video format: H.264 720p HD/VGA
  • Connect with OPTEX Vision app, available via app store
  • Video can be stored via cloud services (such as Dropbox or Google Drive), or with a microSD card (pre-installed), without the need for contracts or monthly fees
  • Night vision with IR lighting LED

In The Box:

  • Quad Beam Photoelectric Detector
  • Accessories
  • Manual

Notes: The Optex iVision+ Connect Wireless Video Intercom System can work without an Internet Service Provider (ISP), but requires a standard 2.4GHz router (sold separately). Remote unlocking functionality can be added with the Door Interface Unit (sold separately, part# IVPC-DI). To add smartphones and tablets, the OPTEX Vision app (iOS or Android) must be installed on mobile devices. A maximum of 4 Door Interface units per Door Station can be supported. A maximum of 6 Door Stations units per Mobile Station can be supported.

Tech Specs

  • Part Number: IVPC-DM

Door Station (IVPC-DS)

  • Video Format: H.264 720p HD/VGA
  • Recording File Format: MP4
  • Memory Card (included): MicroSD card; UHS-I 4 to 32 GB
  • View Angle: H135°/ V75°
  • Audio Direction: Two ways (Full duplex)
  • Wi-Fi:
    • Network Connectivity: Wi-Fi 802.11 b/g/n
    • Frequency: 2.4 GHz
  • Sub 1 G:
    • Frequency: 916 MHz
  • Power: 10 to 24 V AC/DC or rechargeable battery (included)
  • Battery Life: 2 months/1 year (battery saving OFF/ON) at 25°C
  • Battery Charging Time: 10 h with 5 V DC, 1 A supply
  • Night Vision: IR lighting LED
  • Operation Temperature: -4°F to 122°F (-20°C to 50°C)
  • Operating Humidity:< 90% (no condensation)
  • IP Rate: IPX5

Mobile Station (IVPS-MS)

  • Audio Direction: Two ways (Full Duplex)
  • Wi-Fi:
    • Network Connectivity: Wi-Fi 802.11 b/g/n
    • Frequency: 2.4 GHz
  • Power: AC adapter 5 V/1.5 A
  • Battery Life: Approximate 8 hours in standby
  • Charging Time: 10 hours by included AC/DC adapter
  • LCD Display: 7-inch Touch LCD 1,024 x 600
  • Operation Temperature: 32°F to 104°F (0°C to 40°C)
  • Operating Humidity:< 90% (no condensation)
