PCS PulseWorx UPB Dimmer Wall Switch, 8 Button

$174.81
SKU: PCKPLD8x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The PCS PulseWorx UPB Wall Controller With Load Dimmer is a Scene Controller and Light Dimmer in a single keypad. This Wall Controller wires into any standard 3-wire installation.

This Keypad can program up to 16 scenes and control six different devices. Program different commands when a button is tapped, double-tapped, held or released to trigger specific lights or devices, a single room, or your whole house. Lights will dim or brighten at a rate from 0.8 seconds to 1 hour. The ON/OFF buttons on the KP6 and KP8 are preset to control its own lighting load.

The Dim/Brighten buttons are pre-programmed to control 8 preset light level scenes right out of the box. The Dimmer controls incandescent lights, low-voltage halogen, as well as magnetic or dimmable electronic transformers.

FEATURES:

  • Dual-purpose dimmer/relay keypad fits in a single gang location
  • 400W or 4A rating can be configured to act as a dimmer or switch
  • Controls single lights, trigger automated scenes or send messages to a central control unit
  • Program up to 16 commands or automated scenes
  • LED Presets individually configure which LEDs will light up or turn off in response to programmed scenes and connected devices
  • Adjustable LED brightness and backlighting helps locate the controller in the dark
  • Dimmer buttons are pre-programmed with 8 preset lighting scenes
  • Easily configured with UPStart software

Tech Specs

  • Part Number:

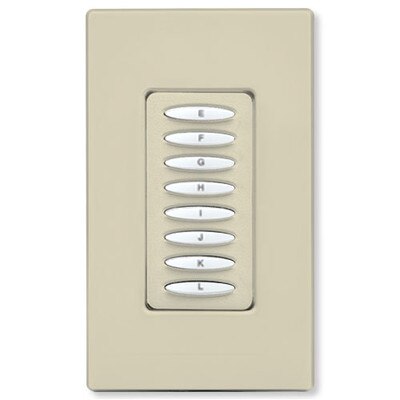

    • KPLD-8-A: Almond

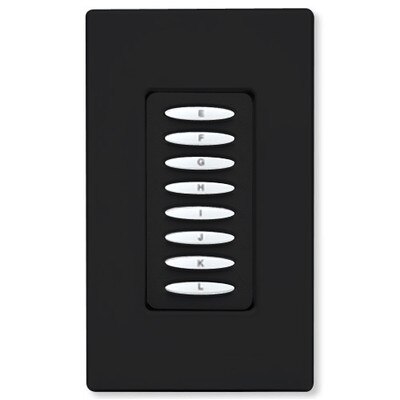

    • KPLD-8-B: Black

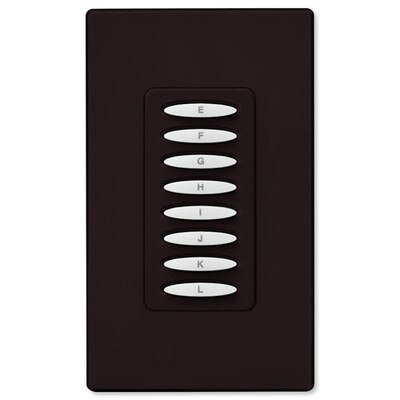

    • KPLD-8-BR: Brown

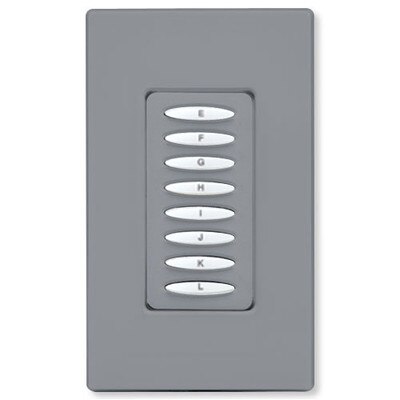

    • KPLD-8-G: Gray
    • KPLD-8-I: Ivory
    • KPLD-8-LT: Light Almond

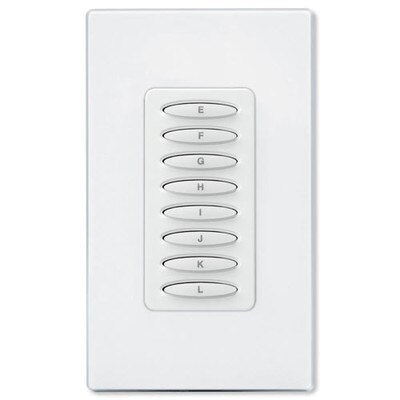

    • KPLD-8-W: White
  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 8 Links/Scenes
  • Connections/Power Wire: Two 16 AWG gauge, 105 C insulation. Black – Hot/Line. White – Neutral. Red – Load. Green – Ground
  • AC Power Cord: NEMA1-15P 6 Foot Cable
  • Max Load: 400W / 4.0A
  • Standby Power Consumption: 0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 140°F (-40° to 60°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508. UL-508-2010 CSA C22.2 #14-2010
  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: Blue, One per button; LED reflects status of Group
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Set-Up Mode: Press and Hold ON & OFF Button for 3 Seconds- All LEDs will Flash
  • Button Type: 8 mechanical latching contact type buttons
  • Wire Nuts: 2 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: Height: 4.12 in Width: 1.75 in Depth: 1.20 in
  • Weight: 5.6 oz.
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
