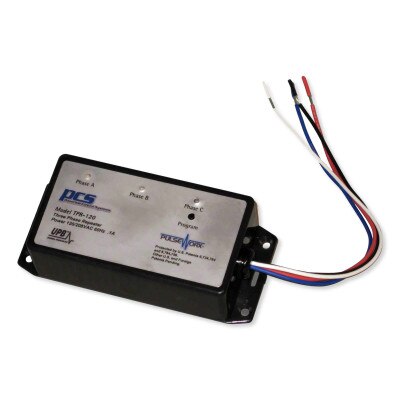

PCS PulseWorx UPB Wired-In 3-Phase Repeater
Product Description
The PCS Three-Phase Repeater is designed to deliver all the benefits of UPB for 120/208V Delta-Wye 60Hz 3-phase environments, such as restaurants, apartment complexes, office buildings or across multiple electrical phases, and also enables communication between PulseWorxR and other devices using the PCS Universal Powerline Bus.
The Three-Phase Repeater transfers any UPB multi-packet generated on a single phase and positions and repeats them properly onto all three phases of the powerline.
FEATURES:
- Properly ensures communication on all three-phase 120/208VAC Delta-Wye 60Hz power
- Connects to a standard 3 phase circuit breaker or 2 breakers of a single phase electrical system when only 2 of the 3 phases are present
- Easily configured with UPStart software
Tech Specs
- Part Number: TPR-120
- Power Requirements: 120V/208/240V AC 50Hz/60Hz
- Connections/Power Wire:
- Four 16 AWG gauge 105 C insulation
- Black – Phase A
- Red – Phase B
- Blue – Phase C
- White – Neutral
- Standby Power Consumption: 0.8 Watts
- Environmental Conditions: Indoor Use Only or water-proof enclosure next to circuit breaker panel
- Temperature: -40° to 194°F (-40° to 90°C)
- Humidity: 10% to 90% RH (non-condensing)
- Certifications: Safety tested for USA and Canada to ETL tested to UL508, UL-508-2010 CSA C22.2 #14-2010
- Status LED Modes:
- Red = Transmitting a signal
- Magenta = Receiving a signal
- Blue = Normal Power Applied
- LED Indicators: One LED per phase reflects status
- During Power Outage: Retains all settings in Non-volatile EERPOM
- Set-Up Mode: Press the setup button 5 times
- Mounting: Suitable 3 gang junction box or equivalent enclosure
- Dimensions: 2.5 H x 4.625 in W x 1.5 in D
- Weight: 7 oz.
- Warranty: 5 Years
