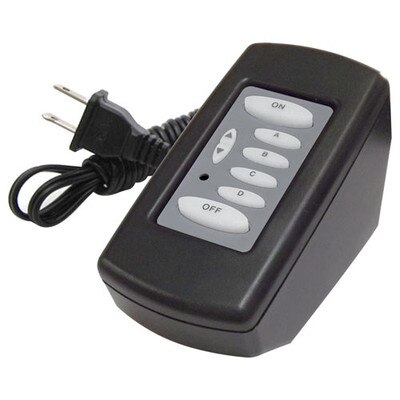

PCS PulseWorx UPB Tabletop Controller, 6 Button

$150.70
SKU: PCKPCD6B

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The PCS PulseWorx UPB Tabletop Keypad Controller, 6 Button is a home automation keypad device capable of transmitting and receiving UPB and IR commands and status over existing power lines. The controller can control single lights, trigger dramatic scenes, or send messages to a central controller. The KPCD-6 has six blue backlit push buttons that can program up to 16 different commands to be transmitted when each pushbutton is tapped, double-tapped, held or released. Available in black and white. This Controller is a desktop device that plugs into any 120VAC electrical outlet.

FEATURES:

  • Six button models accepts UPB and IR commands
  • Program buttons to send commands upon different types of inputs
  • Temporarily lock the keypad by pressing and holding the middle four buttons
  • LEDs will light up or turn off in response to different scenes
  • Adjust LED brightness to find the controller at night
  • Easily configured with UPStart software

Tech Specs

  • Part Number:
    • KPCD-6-B: Black
    • KPCD-6-W: White
  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 8 Links/Scenes
  • Connections/Power Wire: Two 16 AWG gauge, 105 C insulation. Black – Hot/Line, White – Neutral
  • Standby Power Consumption:< 0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Temperature: -40° to 194°F (-40° to 90°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508, UL-508-2010 CSA C22.2 #14-2010
  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: One per button; LED reflects status of Group
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Set-Up Mode: Press and Hold E & L Button for 3 Seconds- All LEDs will Flash
  • Button Type: 8 mechanical latching contact type buttons
  • Wire Nuts: 2 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: Height: 4.10 in Width: 1.70 in Depth: 1.80 in
  • Weight: 5.0 oz.
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
