PCS PulseWorx UPB Keypad Controller with Load Relay

$218.57 to $223.04
SKU: PCKPLC7x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The PCS PulseWorx 0-10V Keypad Relay Dimmer is designed to control 0-10V dimmable LED fixtures within a UPB network. When connected to a UPB receiving module, RM-0-10V, the Keypad can deliver Dim/Brighten commands to LEDs. Without the RM-0-10V module, the Keypad can still issue On/Off commands to non LED lighting fixtures.

The KPLC7x can program up to 16 scenes and control six different devices. Program different commands when a button is tapped, double-tapped, held or released to trigger specific lights or devices, a single room, or your whole house.

This Keypad Relay Dimmer is an in-wall device that wires into any standard 2-wire installation (a neutral wire is required). The controller can be installed into a single-gang or multi-gang junction box. The RM-0-10V module installs between the Relay Dimmer and LED fixtures.

FEATURES:

  • Dual-purpose dimmer/relay keypad fits in a single gang location
  • Controls single lights, trigger automated scenes and/or send messages to a central control unit
  • Program up to 16 commands or automated scenes
  • Command LEDs when paired with RM-0-10V module
  • Buttons can be programmed to provide direct load control, other single devices or scenes
  • Adjustable backlit buttons to help locate in the dark
  • Easily configured with UPStart software

Tech Specs

  • Part Number:

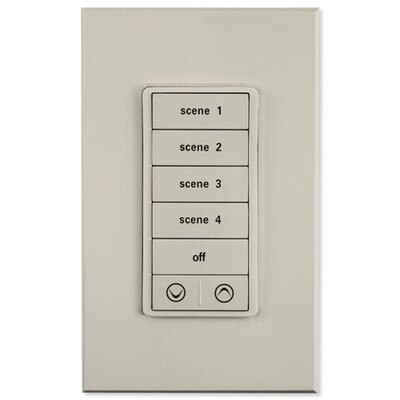

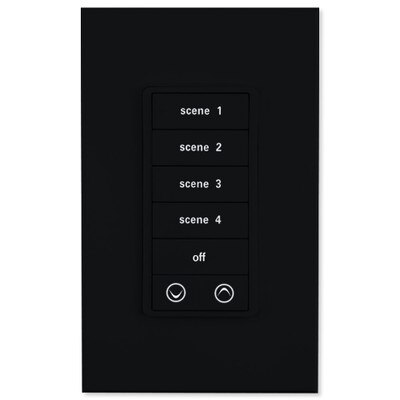

    • KPLC-7-B: Black
    • KPLC-7-LA: Light Almond

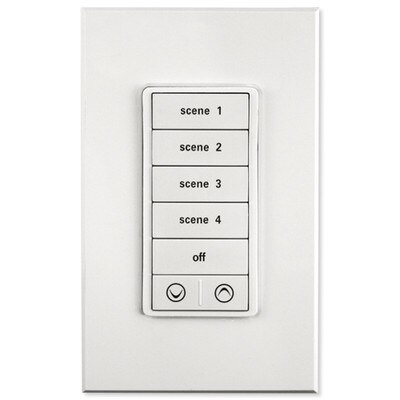

    • KPLC-7-W: White
  • Power Requirements: Primary: 120 Volts AC, 60Hz
  • Transmission Channels: 8 Links/Scenes
  • Connections/Power Wire: Two 16 AWG gauge. 105 C Insulation. Black – Hot/Line; White – Neutral; Red – Load; Green – Ground; AC Power Cord; NEMA1-15P 6 Foot Cable
  • Load Type: 0-10V LED Driver
  • Standby Power Consumption: 0.8 Watts
  • Temperature: -40° to 140°F (-40° to 60°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: Blue, One per button; LED reflects status of Group
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Set-Up Mode: Press and Hold ON & OFF Button for 3 Seconds- All LEDs will Flash
  • Button Type: 7 mechanical latching contact type buttons.
  • Wire Nuts: 2 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: 4.12 (H) x 1.75 (W) x 1.20 (D) inches
  • Weight: 5.6 oz.
  • Warranty: 5 Years
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508. UL-508-2010. CSA C22.2 #14-2010
