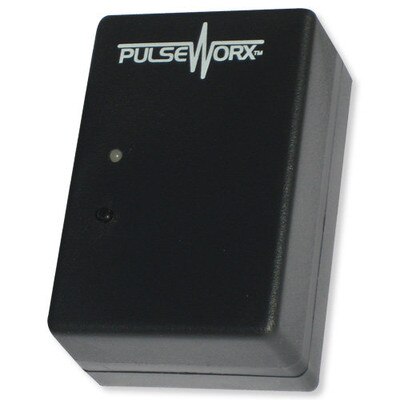

PCS PulseWorx UPB Timed Event Controller
Product Description
The PCS Timed Event Controller is an automation timer device capable of transmitting and receiving UPB digital commands and device status over pre existing power lines at designated times. The TEC plugs into a standard outlet and can be programmed to control single lights, trigger dramatic scenes, or send messages to a central controller, and stores up to 20 individual timed events. Each event can be configured to occur daily, Monday through Friday, on weekends, on specific days of the week, or on a specific day of the year. Event times can be specified as absolute times or relative to sunrise or sunset times (based on your geographic location). Security Mode can program events to randomly activate on selected days within a specified time window giving your home a lived in look.
FEATURES:
- Automation timer device stores up to 20 individual timed events
- Configurable event trigger – daily, sunrise/sunset, workweek, weekends, or specific days of the week/year
- Astronomic Sunrise/Sunset Settings
- Automatic Clock Adjustment
Tech Specs
- Part Number: TEC
- Power Requirements: Primary: 120 Volts AC, 50/60Hz
- Transmission Channels: 20 individual timed events
- Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
- LED Indicators: One per button; LED reflects status of Group
- During Power Outage: Retains all settings in Non-volatile EERPOM
- Set-Up Mode: Press the setup button 5 times, the LED blinks
- Dimensions: 3.0 H x 2.0 W x 1.55 in D
- Weight: 5.0 lb.
- Mounting: Standard Receptacle
- Operating Temperature: -40° to 104°F (-40° to 40°C)
- Input Power: 120 VAC 60 + 3Hz
- Warranty: 5 Years
