PCS PulseWorx UPB Wall Controller, 7 Button

$187.86 to $191.69

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm –

Product Description

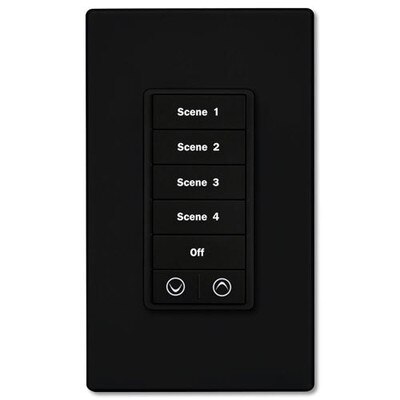

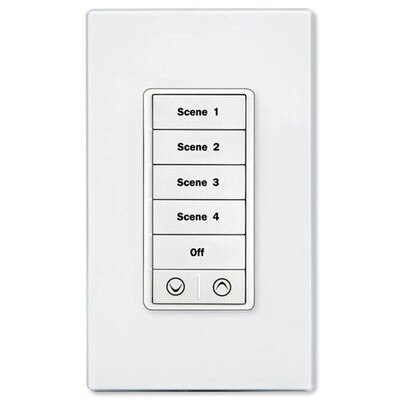

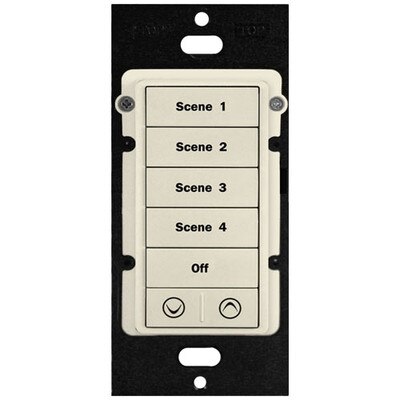

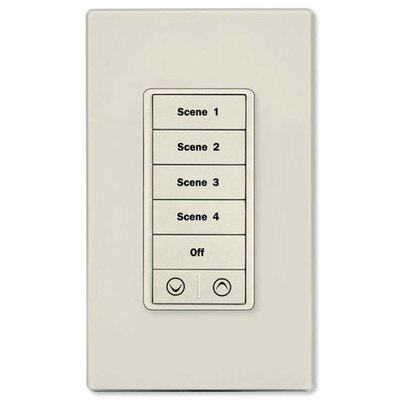

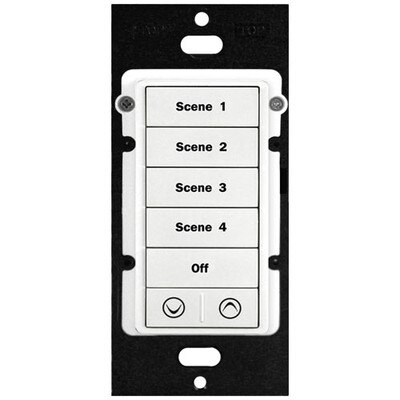

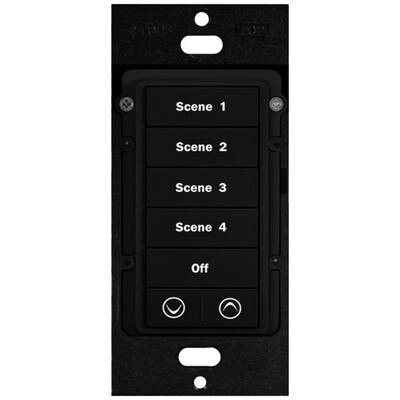

The PCS PulseWorx UPB In-Wall Keypad Controller, 7 Button transmits UPB signals over power lines to control single lights, trigger automated scenes, or send messages to a UPB system controller. The KPCW-7 features five large and two small buttons to command specific lights or trigger automated scenes in a single zone or through the whole home. Program up to 16 different commands to be transmitted when each pushbutton is tapped, double-tapped, held or released. Available in black and white.

This Keypad Controller is an in-wall device that wires into any standard 2-wire installation (a neutral wire is required). The controller can be installed into a single-gang or multi-gang junction box.


  • Pre-programmed to trigger 5 preset scenes, and Dim/Brighten selected scenes
  • Each Button operates one of 16 specific commands from a single tap, double tap, press or release
  • LED Presets individually configure which LEDs will light up or turn off in response to programmed scenes and connected devices
  • Adjustable LED brightness and backlighting helps locate the controller in the dark
  • Temporarily lock out feature
  • Easily configured with UPStart software

Tech Specs

  • Part Number:
    • KPCW-7-B: Black
    • KPCW-7-LA: Light Almond
    • KPCW-7-W: White
  • Power Requirements: Primary: 120 Volts AC, 50/60Hz
  • Transmission Channels: 7 Links/Scenes
  • Connections/Power Wire: Two 16 AWG gauge, 105 C insulation; Black – Hot/Line; White – Neutral
  • Standby Power Consumption: 0.8 Watts
  • Environmental Conditions: Indoor Use Only
  • Operating Temperature: -40 to 194° F (-40 to 90° C)
  • Operating Humidity: 10 to 90 percent RH (non-condensing)
  • Certifications: Safety tested for USA and Canada to ETL tested to UL508; UL-508-2010CSA C22.2 #14-2010
  • Status LED Modes: All programmable with UPStart On, Opposite, Off, N/C
  • LED Indicators: One per button; LED reflects status of Group
  • IR Receiver: Yes
  • During Power Outage: Retains all settings in Non-volatile EERPOM
  • Setup Mode: Press and Hold ON & OFF Button for 3 Seconds – All LEDs will Flash
  • Button Type: 5 mechanical latching contact type buttons, 2 Momentary contact type buttons
  • Wire Nuts: 2 included
  • Mounting: Single Gang or multiple-ganged junction box
  • Dimensions: 4.1(H) x 1.7(W) x 1.8(D) inches
  • Weight: 5 ounces
  • Warranty: 5 Years
  • US Patent No.: 6,734,784; 6,784,790; 7,265,654; 7,688,183. U.S. and foreign patents may be pending.
