PCS 0-10V Relay Dimmer Wall Switch, 277V


Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

Install On/Off/Dim controls by replacing your standard LED light switch with the PCS 0-10V Relay Dimmer Wall Switch, 277V. Powerline Control Systems, Inc. has patented a new method called Relay Dimming that offers many advantages. Relay Dimming uses the standard mechanical relay in wall switches or occupancy sensors to send messages to our simple low-cost receiver modules installed in any standard LED fixture with a 0-10V driver. Functioning together, smooth dimming to any level is easily achieved.

  • Full featured dimming
  • Single-tap: top 100% – bottom: Off. Double tap: top 40% – bottom 10%
  • If needed, field adjustable levels in switch to " tune " for the site
  • No new wires means a 2-person job is now a 1-person job
  • Bid the job without investigating wiring complexity
  • No programming or commissioning needed – operates right after install
  • Parts cost equal to the older, less functional method of using a low-voltage switch
  • Switch has occupancy sensor input if needed
  • Switch has 3-way (traveler) control possible with available remote-switches
  • The easiest least-expensive way to meet Title 24 dimming requirement
  • Win retrofit and new install jobs with less effort and better function

In The Box:

  • Relay Dimmer Wall Switch

NOTES: Neutral wire required. Requires the RM-0-10V, sold separately, to operate LED fixtures. Rated for indoor use only. Wallplate not included.

Tech Specs

  • Manufacturer Part #:
    • WS-277V-I: Ivory

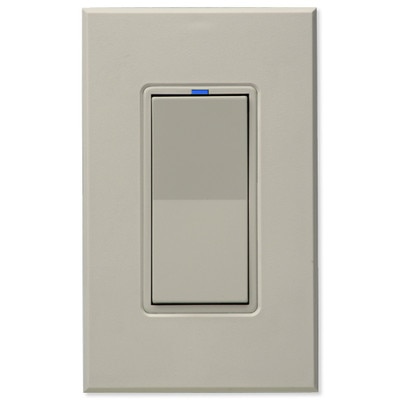

    • WS-277V-LA: Light Almond

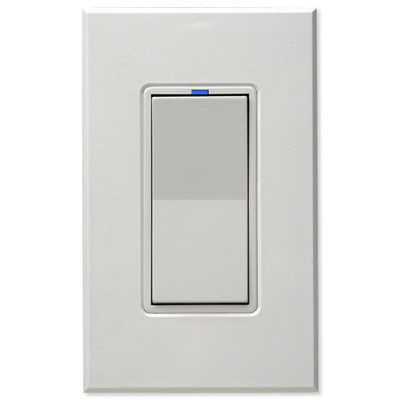

    • WS-277V-W: White
  • Maximum Load: 15A
  • Connections: 14 GA, 105 C insulation
  • LED Indicator: Yes
  • Dimensions: 4.3 (H) X 1.7 (W) X 1.9 (D) inches
  • Weight: 0.3 lb.
  • Mounting: Standard J box
  • Input Power: 277 VAC + 10%
  • Input Frequency: 60 ± 0.3 Hz
  • Operating Temp: -40° to 140°F (-40° to 60°C)
  • Warranty: 5 Years
