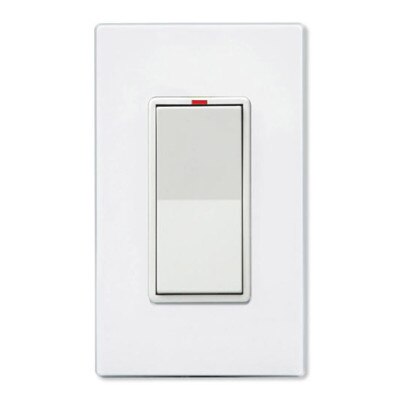

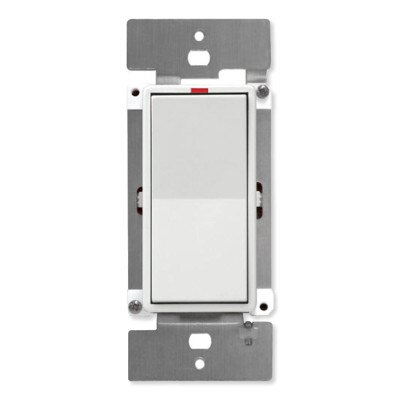

PCS SimpleWorx Wall Switch Transceiver Relay, 15A, White (Open Box)
Product Description
The WSXR Wall Switch Relay is both a Transmitter and Receiver that will control a local electrical load – such as a light – similar to any standard wall switch and turn on any SimpleWorx receiver too:
What makes the WSXR Wall Switch Relay so special is that it can also remotely control the load of any SimpleWorx receiving device installed anywhere else in the same electrical system – no control wires are needed! Once the Transmit portion of the WSXR is "linked" to a load controlling SimpleWorx receiver (refer to "Linking a Transmitter to a Receiver") it is capable of controlling that receiver's load just as if it were its own load. The transmitter portion, or the Top Rocker of the Wall Switch can be linked to as many SimpleWorx receivers as you like. The receiver portion, or the Bottom Rocker can be linked to up to eight Transmitters.
- Tap the top rocker switch to turn the load ON
- Tap the bottom rocker switch to turn the load OFF
- Transmitters use 120VAC trigger
- Attractive Low-profile decorator style design
- Available in 7 colors: White, Light Almond, Almond, Ivory, Black, Brown or Gray.
- Mounts in a standard single or multi-gang wall box
- Controls as many Receivers as you want
- Wire-and-Play with SPC enabled devices.
- Three-Way ready
- Power failure restore to last state
- 5 year warranty
Tech Specs
- Part Number: SWX-WSXR-15-W
- UPC: 811976013976
- Color: White
Electrical
- Power Requirements: Primary: 120 Volts AC, 50/60Hz Single Phase
- Neutral Wire: Required
- Connections/Power Wire: 16 AWG gauge, 105 C insulation

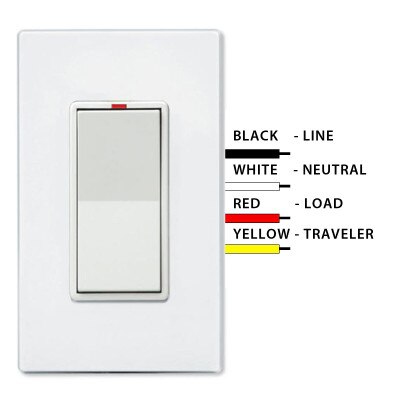

- Black: Hot/Line
- White: Neutral
- Red: Load
- Ground: 18 AWG stranded copper
- Standby Power Consumption: <0.8 Watts
- Load Type: Relay on and off
- Maximum Load: 15A
- Environmental Conditions: Indoor Use Only
- Temperature: -40° to 140° F (-40° to 60° C)
- Humidity: 10 to 90 percent RH (non-condensing)
- Certifications: Safety tested for USA and Canada ETL tested to UL508; UL-508-2010; CSA C22.2 #14-2010
Operation
- Status LED Modes:
- Red: Operation Mode
- Flashes Green: Transmitting SPC Message
- Blinking Green: Link Mode
- Transmission Channels: 1 Group
- During Power Outage: Retains all settings in Non-volatile EERPOM
Mechanical
- Paddle Type: Decorator Style True Rocker
- Set Button: Paddle
- Wire Nuts: 4 included
- Mounting: Single Gang or multiple-ganged junction box
- Dimensions: 4.25(H) x 1.68(W) x 1.37(D) inches
- Weight: 4.55 ounces
- Warranty: 5 years
Mode Descriptions
- Normal: Power is applied to device
- Link: Press and Hold Rocker or Button for >6 seconds
- Link Exit: Tap while in Link Mode
- Test Mode: 5 taps while in NORMAL Mode of a Transmitter
- TEST Mode Exit: 1 tap while in TEST Mode
- Signal Strength Mode: 6 taps while in NORMAL Mode of a Receiver
- Noise Strength Mode: 7 taps while in NORMAL Mode of a Receiver
- Factory Default: 10 taps while in LINK Mode
LED Indicator Status
- Red: Normal Mode Power Applied
- Blinking Green: Link Mode
- Flashes Green: Transmitting
- Dark/Green: Test Mode
- Pulses Green 1-16X: Same Phase/ Signal Strength Display Mode of a Receiver
- Pulses Red 1-16X: Opposite Phase / Signal Strength Display Mode of a Receiver
- Pulses Orange 1-16X: Relative Noise Strength at Receiver
- Blinks Red 10X: Indicates that device has been factory defaulted
