  • Platinum Tools Pocket-Sized PoE Detector

Platinum Tools Pocket-Sized PoE Detector


Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm –

Product Description

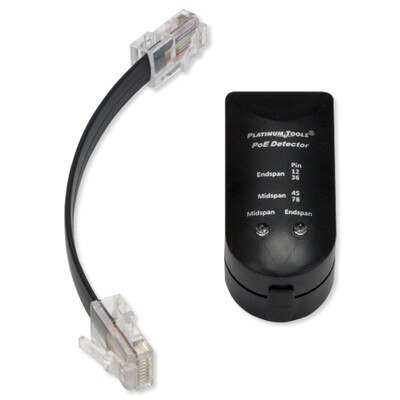

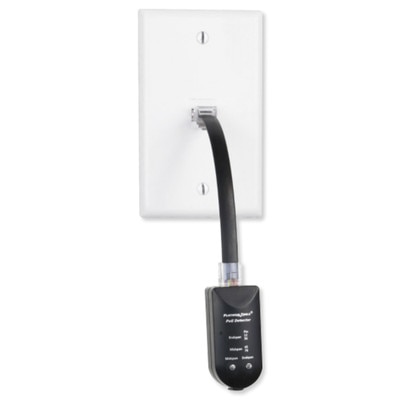

The Platinum Tools pocket-size PoE Detector detects PoE end/mid-span voltages on network cables. LED indicators instantly show "GO/NO-GO" detection on PoE networks. Plug cables directly into the built-in RJ45 jack or use the included patch cord to detect voltage in wall jacks. Differentiates between end-span PoE power (which is supplied from PoE switches or router) and mid-span voltage from injectors. End-span detection indicate voltages are found on pairs 1/2, 3/6; mid-span detection indicates voltages found on pairs 4/5, 7/8.

  • Go/No-Go PoE Voltage Detector
  • End-span or Mid-span
  • Bright LED indicators
  • Plug direct or use included patch cord
  • Pocket-size
  • 802.3af or 802.3at compatible
  • Detection range is between 24V-48V

In The Box:

  • Detector
  • Patch cord

Tech Specs

  • Part Number: TPS100C
  • PoE Standard Compatibility: 802.3af or 802.3at
  • Detection Range: 24V-48V

Product Docs
