  • Platinum Tools Tone and Probe Set

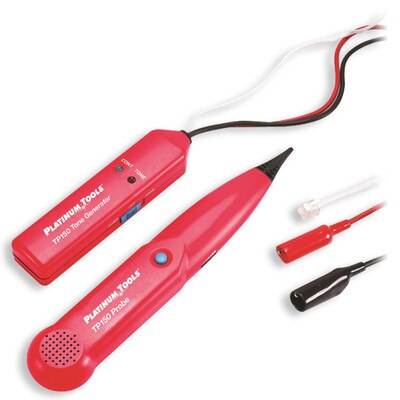

Platinum Tools Tone and Probe Set

$29.41
SKU: PLTP150

Order now and we'll ship usually within 1-2 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

Make cable tracing easy with Platinum Tools' Tone and Probe Set. With its steady tone, push-to-scan button and a clear loudspeaker, quickly trace and identify cable locations on jacks or through walls. Wire bundles are easily penetrated with the tapered probe tip and the probe volume is controlled with a thumbwheel. With common send and receive frequencies, the TP150 is versatile enough to be used with other tone generators or probes.

Probe Features:

  • Recessed push-button activates tone scanning when needed
  • Tapered tip allows easy penetration of cable bundles
  • Side thumb wheel adjusts volume and turns off power to reserve battery power
  • Probe Sensitivity: 100Hz~300KHz

Tone Generator Features:

  • Slide switch to select TONE/OFF/CONT
  • Continuity mode to verify if a wire is broken
  • Alligator clips to test pairs and an RJ11 connector for data or phone lines
  • Tone Generator Output: 1.5KHz square waveform

In The Box:

  • Tone Generator
  • Probe
  • Carrying case
  • 9V batteries
  • Instructions

Tech Specs

  • Part Number: TP150
  • Warranty: 1 Year

Probe

  • Sensitivity: 100Hz~300KHz
  • Length: 9.0 x 1.8 x 1.0 inches (229 x 46 x 25mm)
  • Weight: 3.8 ounces (106.2g)

Tone Generator

  • Output: 1.5KHz square waveform
  • Length: 5.7 x 1.7 x 1.1 inches (145 x 43 x 28mm)
  • Weight: 4.3 ounces (122.8g)
