Qolsys IQ Panel 4, PowerG + 319.5 MHz (Verizon)

$447.81
SKU: QSIQP4001x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

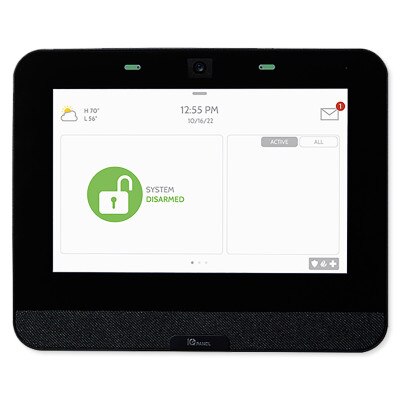

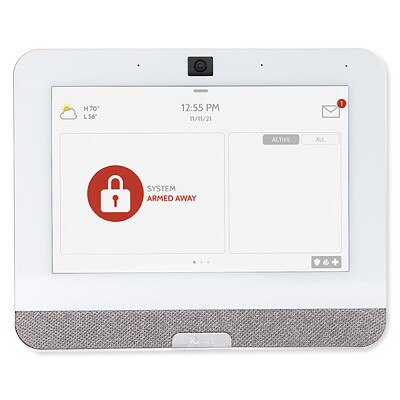

The Qolsys IQ Panel 4 is a 7" touchscreen automation and security hub that uses an Android operating system to provide full security and smart home functionality in an easy to use interface. This smart hub/ system controller includes a built-in 8MP camera, QuadSound front facing speakers, 3 microphones for communication and voice control, and wireless compatibility with Z-Wave 700, PowerG, and 319.5 MHz wireless frequencies.

The IQ Panel 4 also includes powerful features such as Live View, Live Answer, Bluetooth Touchless Disarming, LTE and Wi-Fi Dual Path Connectivity and more.

Features:

  • Dual Path Connectivity: Wi-Fi and LTE radios operate simultaneously to provide improved latency, reliability, and speed
  • Dual SRF With PowerG: PowerG & legacy security enable compatibility with 915 and 319.5 MHz security devices

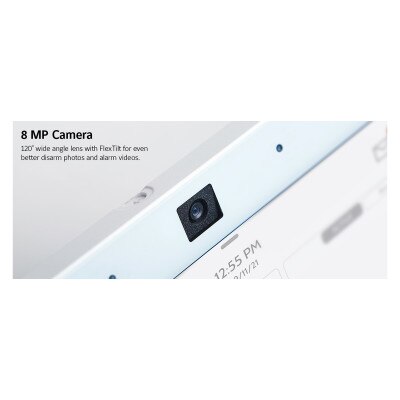

  • 8MP Panel Camera: 120° Field-of-View, Fixed-Focus Camera with Flex-Tilt Angle Adjustment
  • Photo Frame: Insert a micro SD card and load your own photos as a screensaver
  • Disarm Photo: Saves photo, date & time when alarm is disarmed & sends them to your phone

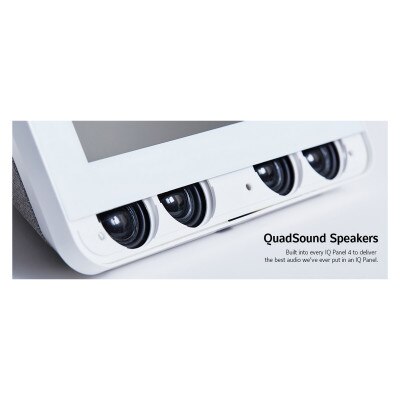

  • QuadSound Speakers: 4 front facing 4W speakers provide clear audio from connected intercoms, video doorbell, and audio streaming sources
  • 3 MEMS Microphones: 3 microphones capture clear voice audio and glass breaking sounds for glass break detectors
  • Z-Wave 700: Control lights, locks, intercoms, thermostats, garage doors and more from your smart device
  • Bluetooth Disarming: Leave your phone in your pocket or purse to arm or disarm your security system when you leave or arrive home
  • Android 9: Uses the latest Android operating system for intuitive, upgradeable software
  • Live View: Stream live feeds from Alarm.com compatible video doorbells or security cameras on the IQ Panel 4 or via the Alarm.com mobile app
  • Live Answer: Speak with guests using your video doorbell and lock/unlock your Alarm.com compatible smart lock from the IQ Panel 4 or your smart device
  • Setup Wizard: Easy install wizard speeds up installation time
  • Glass Breaker Detector: Uses built-in microphones to detect breaking glass

In The Box:

  • IQ Panel 4
  • Verizon LTE SIM card
  • Power supply
  • SmartMount backplate
  • Quick install guide

NOTES: Requires an Internet connection and an active remote monitoring account with Alarm.com. Requires the Alarm.com mobile app to monitor and control the IQ Panel 4 remotely using a smartphone or tablet (Android, iOS). IQ Panel 4 Stand for desktop and the IQ Panel 4 Base with Built-In Subwoofer are both sold separately. Cameras, doorbells, and other optional accessories are sold separately.

Tech Specs

  • Part Number:
    • IQP4001BLK: Black
    • IQP4001: White
  • UPC:
    • IQP4001BLK (Black): 857497008695
    • IQP4001 (White): 857497008688
  • Platform: Android 9
  • Operating System: Security & Home Automation Touch and Swipe Interface
  • Processor: Qualcomm Snapdragon 8 core SOM (System on a Module)
  • LCD Display:
    • Size: 7" LCD
    • Resolution: 1280 X 800
    • Brightness: 300 cd/m2
    • RGB: 24bit, 16.9 million colors
  • Touchscreen: Capacitive glass multi-touch
  • User Codes: Up to 242: Role based (Dealer, Installer, Master, User, Guest, Duress)
  • Wireless:
    • WiFi: Wi-Fi 802.11 a/b/g/n/ac dual band 2.4/5GHz – including built-in router capability
    • Cellular: LTE (Bands 2,4,5,12,13,17)
    • Z-Wave 700: Supports up to 137 devices (80 lights, 20 Locks, 10 Thermostats, 6 Garage Doors, 21 Misc
    • PowerG: Up to 128 Devices 915 MHz Long Range Encrypted 2-Way Wireless
    • Security R/F: Up to 128 RF Zones.
    • IQ Panel 4 uses PowerG plus ONE of the following depending on SKU: 319.5MHz, 345MHz or 433MHz.
    • Bluetooth: Qualcomm Bluetooth Low Energy (BLE) 4.2
  • Flash Memory: Internal Storage, 16GB NAND Flash
  • LED Indicator: Green (Disarmed), Red (Armed)
  • Camera: Front camera, 8MP Wide-Angle, 120° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment
  • Microphone: 3 MEMS (Micro-Electro-Mechanical System) Microphones with Echo Cancellation
  • Speaker/Siren: 4W x 4 QuadSound 4x front-facing 4W speakers and 85-decibel siren
  • Tamper: Dual panel and wall tamper with spring release and Smash and Grab reporting
  • Battery: Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
  • Buttons: Single wake/sleep button, all user controls through touch interface
  • Dimensions: 6.1" H x 7.5" W x 1" D (155mm x 191mm x 26mm)
  • Temperature:
    • Operational: 32°F to 120.2°F (0°C to 49°C)
    • Storage: -4°F to 122°F (-20°C to 50°C)
  • Humidity: up to 93% relative humidity indoors
  • Power Supply: 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adapter evaluated at 120vAC for UL/cUL
  • Mount: SmartMount for wall mounting included. SmartMount table stand or SmartMount IQ Base Table Stand with built-in Subwoofer sold separately
  • Certifications:
    • UL/cUL: UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
    • FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs)
    • IC: 11205A-QSIQPANEL4
