Qolsys IQ Wi-Fi 6 Mesh Router System for IQ Panels


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

The Qolsys IQ Wi-Fi 6 Mesh Router System checks all the boxes to meet the standards for both professional and residential wireless networks. Gigabit speeds provide lightning fast download and upload times, and the powerful self healing Wi-Fi 6 mesh provides incredible coverage for any size building. A single IQ Wi-Fi 6 Mesh Router can cover a 1,500 sq ft area, and if that is not enough to provide reliable Wi-Fi across your building, up to a total of 8 devices can be incorporated into a single network to eliminate dead spots and provide fast, reliable service to every corner.

The IQ Wi-Fi 6 is the only mesh router system that integrates directly with IQ Panel and for on site and remote access. Out of the box integration with monitoring provides easy end user access to the Wi-Fi network in the mobile app. The Qolsys IQ Panel can be used as a local controller or configure settings for your IQ Wi-Fi 6. Create and manage profiles, easily scan a QR code to add someone to the guest network, and view the number of devices connected.

The IQ Wi-Fi 6 is also capable of operating 3 separate Networks SSIDs to manage security devices separately from the end user, entertainment or guest devices. This allows wireless devices to operate more efficiently and securely without accidentally compromising wireless transmissions and keeps certain devices from being accessed from unwanted users or guests. Devices such as the Qolsys IQ Panel and IQ Remote automatically move to the security partition when paired and you can easily transfer cameras, video doorbells, and garage openers to keep them separate from the end user's tablets, TVs and appliances.

  • Dual-band mesh Wi-Fi router connects Wi-Fi devices across 1,500 sqft. per device
  • Can be used as a stand alone or parallel configuration with existing Wi-Fi networks
  • Managed and configured via the IQ Panel or Web interface

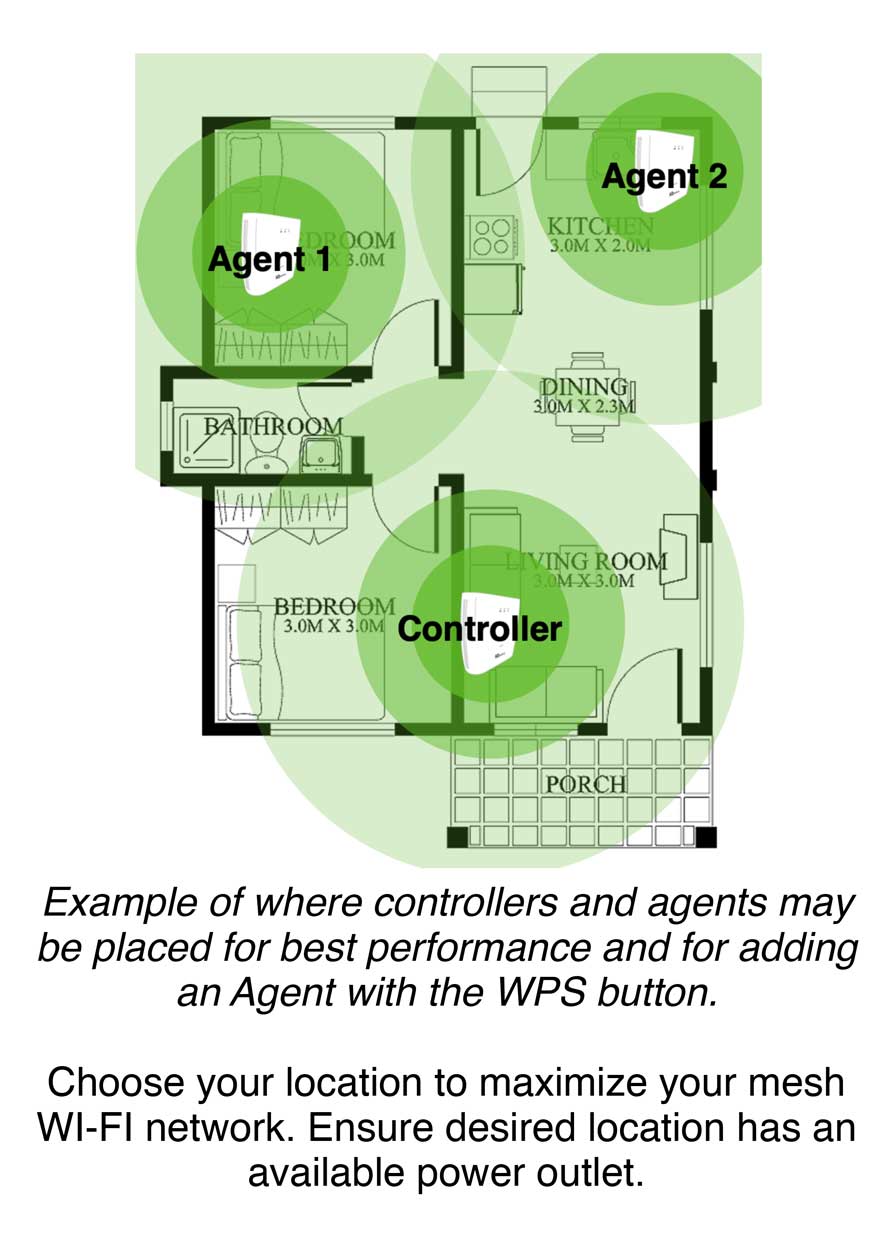

  • Up to 8 nodes (1 controller & 7 agents) can be added to a single network
  • Wi-Fi Partitions separates Wi-Fi devices across 3 separate networks
  • Can replace existing Wi-Fi networks or operate alongside with minimal interference

In The Box:

  • IQ Wi-Fi 6 Mesh Router
  • Ethernet Cable
  • Power Supply
  • Wall Mounting Bracket


  • Requires an IQ Panel or a modem (both sold separately) with an Internet connection.
  • IQ WiFi will not increase the speed coming from your ISP (Internet Service Provider) but can ensure you are getting the best coverage throughout your location.
  • Please note that not all buildings are the same, and building materials, wireless interface, and other factors can limit Wi-Fi range.

Tech Specs

  • Part Number: IQWF6
  • UPC: 857497008534

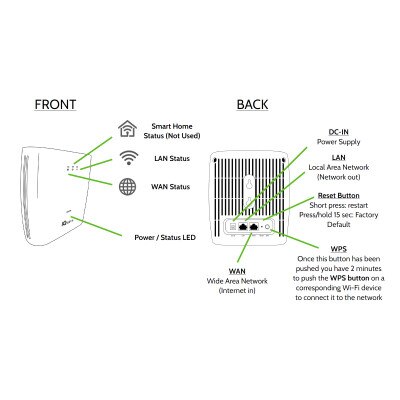

  • LED and Button:
    • LEDs: 4 Single Color LED
    • 1 WPS Button on the side
    • 1 Reset button on the back
  • Wireless Band: Dual IEEE 802.11 b/g/n/ax 2.4GHz IEEE 802.11 a/n/ac/ax 5GHz – AX1800
  • Ethernet: 1x LAN / 1x WAN Gigabit Ethernet Ports
  • Security: WPA2 and WPA 3 Encryption
  • Expandable Mesh: Add up to 8 nodes (1 controller & 7 agents)
  • DHCP: Server, Client
  • Protocols: IPv4 and IPv6
  • Guest Network: 2.4GHz/5GHz
  • WPS: Physical button is on the side of the device
  • Power Supply AC-DC: AC (110V 60Hz / 240V 50Hz), 12 DC (12V/1A) – Barrel jack
  • Operating Temperature: 32°F to 104°F (0°C – 40°C)
  • Operating Distance: Up to 1,500 square feet per point
  • Weight: 0.936 lbs (425g)
  • Size: 5.96 x 5.92 x 2.18 inches (151.4 x 89 x 55.4mm)

Product Docs
