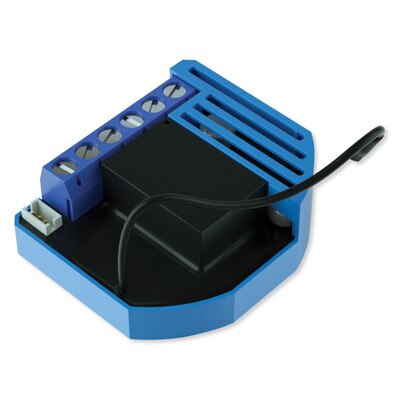

Qubino Z-Wave Plus Flush 1 Relay, Gen5


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

The Qubino Flush 1 Relay controls on/off function for one electrical device. It supports push-button/momentary switches and toggle switches (default). It measures power consumption of the connected device and can be paired with a digital temperature sensor (sold separately). It can be paired with a digital temperature sensor (sold separately) to program automated scenes and control devices when a set temperature is reached. The Qubino Flush 1 Relay also acts as a Z-Wave repeater to improve the range and stability of the Z-Wave network. The Flush 1 Relay can be used in many different scenes, which can help make your life more comfortable. Qubino devices are installed into flush mounting boxes behind the switches.


  • OMRON relay used for switching ensure long durability and top quality.
  • Specially designed casing ensure the most simplified installation (ease of cabling fixing)
  • inside a flush mounting box.
  • Extremely low energy consumption: less than 0.4 W.
  • Extended operating temperatures: (-10 to 40) °C.
  • Support for the connection of digital temperature sensor.
  • Power consumption measurement.
  • 2 binary inputs offer the option to connect additional devices such as sensors, switches/push buttons, etc.

In The Box:

  • Flush 1 Relay
  • Instruction Manual

NOTE: Remote commands using Z-Wave requires a Z-Wave network controller (sold separately).

Tech Specs

  • Part Number: ZMNHAD3
  • Power Input:
    • 110 – 240 VAC ±10%
    • 50/60Hz, (24-30 VDC)
  • Rated load current of AC output (resistive load): 1 X 10A / 240 VAC
  • Rated load current of DC output (resistive load): 1 X 10A / 30 VDC
  • Output circuit power of AC output (resistive load): 2300 W (240 VAC)
  • Output circuit power of DC output (resistive load): 240 W (24 VDC)
  • Power measurement accuracy:
    • P = 5-50 W, ±3 W
    • P > 50 W, ±3%
  • Digital temperature sensor range: -25°C to 80°C (-13 to 176°F)
  • Operating Temperature: -10° to 40°C (14 to 104°F)
  • Operating Distance: up to 30 m indoors (98 ft)
  • Dimensions: 41.8 W x 36.8 H x 15.4 D mm / 1.65 W x 1.45 H x 0.66 D in
  • Weight: 28 g (0.98oz)
  • Electricity consumption: 0.4 W
  • For installation in boxes: Ø ≥ 60 mm (2.36 in) or 2M, depth ≥ 60 mm (2.36 in)
  • Switching: Relay
  • Z-Wave Repeater: Yes
  • Warranty: 2 Years
