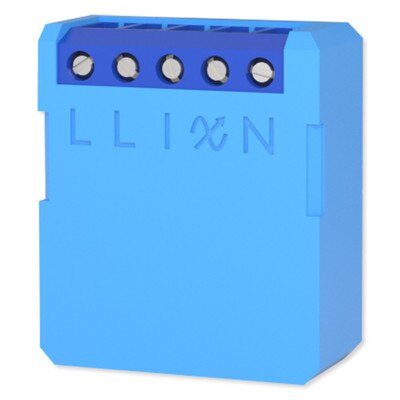

Qubino Z-Wave Plus Mini Dimmer, Gen5


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Pay in 4 interest-free payments. Learn More.

Product Description

Smarten up your conventional lighting, control and dim your lights from anywhere. Qubino Mini Dimmer gives you remote control to dim/brighten all types of dimmable bulbs. Whether you're unwinding on the couch, busy at work, or vacationing miles away, you'll be able to remotely control and dim your home lighting from anywhere.

Mini Dimmer is a MOSFET-switching light device that also supports control of low-voltage halogen lamps with electronic transformers, dimmable compact fluorescent lights, and dimmable LED bulbs. It measures power consumption of the connected device. It supports push-button/momentary switches (default) and toggle switches. It can work with or without the neutral line. The Mini Dimmer is 25% smaller than other wireless dimmers on the market. Because of its small size, it allows the easiest and quickest installation.


  • Works in a 2-wired or 3-wire system – neutral line required only in a 3-wire setup
  • Miniscule size allows it to fit in the smallest, most shallow and most crowded electrical boxes
  • It fits all types of flush mounting boxes
  • Can connect and remotely control bulbs from 1W on, no minimum load required
  • Dim incandescent, halogen, LED, LED strip, and fluorescent bulbs
  • LED signal lights help easily recognize if the Mini Dimmer is included or excluded from the network
  • Extremely low energy consumption: less than 0.4 W

In The Box:

  • Mini Dimmer
  • Instruction Manual

NOTE: Remote commands using Z-Wave requires a Z-Wave network controller (sold separately).

Tech Specs

  • Part Number: ZMNHHD3
  • Power Input:
    • 110 – 240 VAC ±10%
    • 50 / 60 Hz,* (24-30 VDC)
  • Rated load current of AC output: 0.85 A / 240 VAC
  • Output circuit power of AC/DC output (resistive load): 200W (240VAC) / 90W (110VAC)
  • Power measurement accuracy (2-Wire): ± 10%
  • Power measurement accuracy (3-Wire): ± 2%
  • Operating Temperature: -10 to 40°C (14 to 104°F)
  • Z-Wave operation range: up to 30 m indoors (98 ft)
  • Dimensions (WxHxD): 38 W x33.5 H x15.5 D mm
  • Weight: 24g
  • Electricity consumption: 0.4W
  • Mounting:
    • Ø ≥ 60 mm (2.36 in) or 2M,
    • depth ≥ 60 mm (2.36 in)
  • Switching: MOSFET (Trailing edge)
  • Z-Wave Repeater: Yes
  • Warranty: 2 Years

Product Docs
