Qubino Z-Wave Plus RGBW Dimmer, Gen5

$64.95
SKU: QUZMNHWD3

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

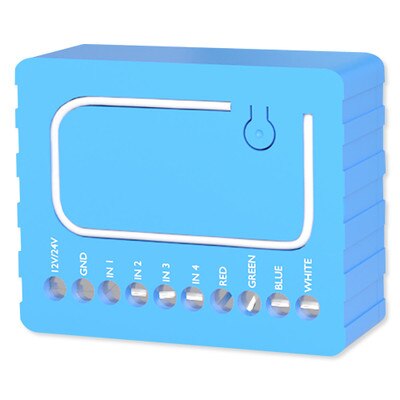

The Qubino RGBW Dimmer gives you the choice between 16 million lighting shades "paint" your home according to your mood or use preset lighting effects for different purposes. This device is used to control RGB/RGBW strips and LED strips or bulbs to create countless colour options and has 6 special scene effects (Ocean, Lightning, Rainbow, Snow, Romantic and Party).

Its extremely small size allows for easy installation behind wall sockets and switches. Controlled devices may be powered by 12 or 24 VDC. The Flush RGBW Dimmer can work in combination with the other Z-Wave devices in your house. You can control it either remotely through the Z-Wave network or through wall switches. It can also control halogen lights and fans. The Qubino Flush RGBW Dimmer also acts as a Z-Wave repeater to improve the range and stability of the Z-Wave network.

Features:

  • Control of RGB, RGBW strips and LED strips or bulbs, halogen lights and fans
  • 6 special scenes effects

In The Box:

  • RGBW Dimmer
  • Instruction Manual

NOTE: Remote commands using Z-Wave requires a Z-Wave network controller (sold separately).

Tech Specs

  • Part Number: ZMNHWD3
  • Power Input: 12/24VDC
  • PWM output frequency: 488Hz
  • Rated output power:
    • 8A for single output channel; 13A at max.
    • (3.25A for R.G.B.W. single output channel is suggested)
  • Max load (e.g. halogen bulbs)
    • At 12V- 156W combined
    • At 24V- 312W combined
  • LED Indicator: Red/Green
  • Operating Temperature: 0 °C to 40 °C (32 to 104°F)
  • Operating Distance: up to 30 m indoors (98 ft)
  • Dimensions: 40.5 W mm x 32 H mm x 14.5 D mm (1.60 W x 1.26 H x 0.57 D in)
  • Weight: 28 g (0.97oz)
  • Gross weight: 34 g (1.20oz)
  • Electricity consumption: 12V: 0.48W; 24V: 0.72W
  • For installation in boxes:
    • Ø ≥ 60 mm (2.36 in) or 2M (78.74 in),
    • depth ≥ 60 mm (2.36 in)
  • Z-Wave Repeater: Yes
  • Warranty: 2 Years

Product Docs
