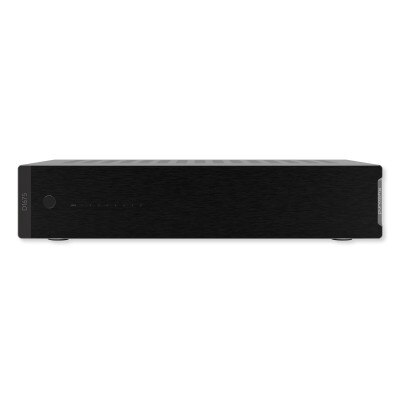

Russound 8 Zone, 16-Channel Premium Digital Amplifier
Product Description
The Russound 8 Zone, 16-Channel Premium Digital Amplifier is a versatile digital amplifier designed to accommodate virtually any kind or sized audio system in order to optimize your home audio experience. This amplifier supports 8 zones (16 channels) of connected speakers and subwoofers, each of which can be individually customized to maximize the performance of connected audio devices. The amplifier supports up to 10 audio inputs: 2 dual bus inputs can play audio across all zones or a dedicated line audio source for each zone. Zones and channels can also be bridged together to deliver robust audio to more powerful speakers up to 150W in larger environments. This amplifier features built-in audio filter setting switches for each individual zone which allow you to accommodate various audio components and optimize their performance. Each zone can be set for Low Pass (LP) for low frequency subwoofers and speakers, High Pass (HP) for higher range or smaller speakers, or Full Range for single point stereo or larger speakers.
- Provides ample power to drive speakers in up to 16 channels across 8 zones or rooms
- Supports up to 10 audio sources: dual bus inputs or 1 dedicated line level input per zone; each zone can select its active input
- Bridgeable channels allow for increased power output to larger or more demanding speaker setups
- Audio Filter Setting Switches allow each zone to be individually configured to deliver the best quality audio possible
- Compatible with a range of control systems and automation platforms, enabling seamless integration and centralized control of your audio system
- 2U Rack Size saves space in standard equipment racks to leave room for expansion
Why You Would Use This Product:
With the Russound 16-Channel Premium Digital Amplifier, you can create a customized multi-room audio system that caters to your unique listening preferences. Whether you're hosting a party and want music to flow seamlessly throughout your home, or you simply enjoy having different audio zones for different activities, this amplifier offers the power and flexibility to bring your audio vision to life. Each zone's audio filter setting switch allows virtually any kind of speaker to connect with the amplifier. Install speakers in your living room, kitchen, patio, and bedrooms, and use the Russound D1290 amplifier to power them all with rich, high-fidelity sound.
In The Box:
- D1675 Digital Amplifier, 16-Channel
- 6 Ft. Power Cord
- Set of 4-Pin Speaker Connectors
- Set of Rack Mount Ears with Screws
- Manual
Tech Specs
- Part Number: D1675
- UPC: 612934853920
- Power Output:
- 4 Ohms: 75W per channel, 1 kHz One Zone Driven
- 8 Ohms: 37W per channel, 1 kHz One Zone Driven
- 8 Ohms Bridged: 150W, 1 kHz One Zone Driven
- Frequency Response:
- Full Range Mode: 20Hz to 20kHz ±3dB at 1W output into 4 or 8 Ohms
- Low Pass (LP) Mode: 20Hz to 160Hz ±3dB at 1W output into 4 or 8 Ohms
- High Pass (HP) Mode: 80Hz to 20KHz ±3dB at 1W output into 4 or 8 Ohms
- Input Sensitivity:
- 4Ω, One Zone: 620 mV for 75W @ 1kHz
- 8Ω, One Zone: 690 mV for 37W @ 1kHz
- Input Impedance: >22k Ohms Line Input
- Signal-to-Noise Ratio, 4 Ohms: >90dB A-weighted
- Signal-to-Noise Ratio, 8 Ohms: >96dB A-weighted
- Volume Gain Adjustment: By Zone
- Zone Line Input: Line or Bus select switch per zone
- Speaker Connectors: Detachable screw-down, support up to 12 gauge wire
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Operating Altitude: 0 to 9,843ft (3,000m)
- Power Requirements:
- North American Model D1675: 115-120VAC, 60Hz (1000W Max)
- International Model D1675i: 220-240VAC, 50Hz (1000W Max)
- Power Connector: IEC C14
- Standby Power Consumption: 0.3W
- Dimensions: 17.125(W) x 3.5(H) x 9.75(D) inches (51.33 x 17 x 36.3 cm)
- Weight: 12.8lbs (5.8kg)
- Warranty: 2-Year Limited
