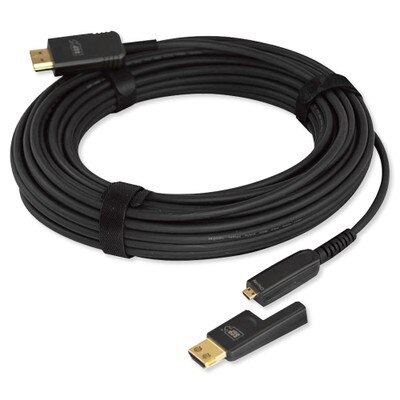

SCP Active Optical 4K HDR HDMI Cable with Detachable Connector
Product Description
The SCP Active Optical 4K HDR HDMI Cable is the most advanced and competitive long reach HDMI solution on the market. This fiber/copper hybrid cable is thinner, more flexible, and outperforms other cables in its class. The 995AOC cable supports the latest HDMI standards including 4K@60 4:4:4 18Gbps, HDR, Multi-Channel Audio, EDID, CEC, HDCP2.2, ARC and HEAC. The SCP AOC Cable features a light-weight CL2 In-wall jacket or a Low Smoke Zero Halogen (LSZH) jacket that is compliant with EN50575:2014.

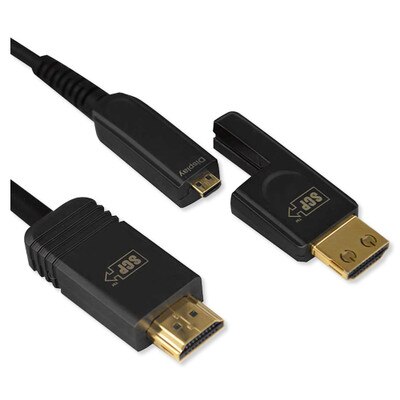

The SCP 995AOC cable features a micro HDMI end on the display/sink side with a unique detachable type D/A adapter. This creates a slimmer cable installation profile. Also included is the SCP Pulling Capsule that protects the cable end during installation and makes narrow conduit/tube installation easier than ever. The 995AOC cable also features the SCP exclusive Snug-Tite Grip that keeps both connector ends securely connected to their devices for maximum signal integrity.
- Snug-Tite Grip for secure connectivity
- Hybrid optical cable with fiber and copper wire
- No loss of signal – delivers crystal clear digital images instantly
- Plug and play Installation
- Thinner, lighter and more flexible
- Detachable connector – type D/A adapter
- Includes pulling capsule for easy installation through a conduit & tight spaces
- Reduced risk of EMI & RFI for maximum signal integrity
- No external power required
In The Box:
- Active Optical 4K HDR HDMI Cable
- Detachable Adapter
- SCP Pulling Capsule
- USB Power Cord for Optional 5V Power Supply
- Installation Manual
Tech Specs
- Part Number:
- 995AOC-10M (10 Meters)
- 995AOC-15M (15 Meters)
- 995AOC-15M (20 Meters)
- HDCP & DDC: HDCP 2.2 Fully Support bi-directional EDID and HDCP communication
- Video Bandwidth:
- 6 Gbps/x3 Channel R.G.B. (max)+ 6 Gbps/ Clock
- Supporting HDMI 2.1 up to 24 Gbps (6 Gbps/ch 4)
- Supported Resolution & Distance: HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters
- O/E Converter:
- Transmitter (Source): 4 channel 850 nm VCSEL array
- Receiver (Sink): 4 CH GaAs PD array
- ESD Protection: High ESD protection at TMDS outputs 8 kV (HBM)
- Connector Type: HDMI A to type D, with HDMI A/Male Adaptor
- Cable Type: Hybrid type with OM3 fiber and copper wire
- Cable Length: 10m/15m/20m (33/49/65 ft)
- Cable Outer Diameter: 4.5mm
- Jacket Outer Material: TPE (LSZH – Low Smoke Zero Halogen) or PVC (CL2)
- Differential Input: 100 ohm (type)
- Power Consumption: 250mW (max)
- Power Supply: Optional USB 5v Rx Side
