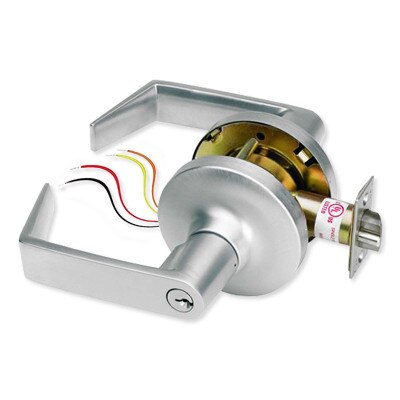

SDC Electra 7200 Series Cylindrical Lockset Eclipse Style Lever
Product Description
The SDC Electra™ 7200 Series Cylindrical Lockset Eclipse Style Lever is a part of SDC's 7000 series of electrical security lever locks. 7200 series models incorporate a grade 1 cylindrical lockset and vandal resistant clutch for long lasting durability. Even when unlocked, the lock's latch does not disengage, maintaining a safely held door at all times when not in use. SDC's Electra™ 7200 series locks are designed for specific access control applications and come in two distinct variations: Fail Secure Operation and Fail Safe Operation.
The 7252 Fail Secure electric cylindrical lock function automatically unlocks the door when powered and allows for unrestricted egress/exit from the inside at all times. During power outages, the 7252 automatically locks itself unless backup battery power is connected to the lock. The 7252 is ideal for high security or restricted access applications, preventing unwanted personnel or visitors from freely entering a select room but allowing for unblocked exits.

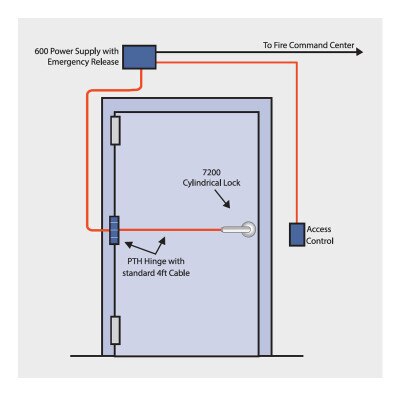

The 7250 Fail Safe electric cylindrical lock function automatically locks the door when powered but allows for unrestricted egress/exit from the inside at all times. If the 7250 is connected to a security system hub or fire safety command center, the lock can be programmed to unlock in emergency situations. The 7250 is ideal for perimeter or exterior doors, safeguarding the building from intrusions while guaranteeing an exit route at all times.
Additionally, both model variations are capable of working with request-to-enter systems when properly wired and powered.
- Fail Safe or Fail Secure options for guaranteed security and accessibility when connected to power
- Heavy duty cylindrical design perfect for new or retrofit construction
- Vandal resistant clutch and ANSI Grade 1 design
- Solenoid control for secure operation
- Optional request-to-exit wiring output
- Field selectable dual voltage, Power regulator included
Why You Would Use This Product:
The SDC Electra™ 7200 Series Cylindrical Lockset Eclipse Style Lever is most effective in buildings where access control must be considered for both security and safety purposes. The Fail Secure model is ideal for controlling access to specific rooms or wings of a building, especially in power outage scenarios when the Lock would be automatically locked. The Fail Safe model is ideal for exits within a large building in order to ensure safe egress is always possible while still preventing intrusions.
SDCSecurity: Security Door Controls Retrofit Made Easy:
The SDCSecurity app helps installers and contractors with installing SDC products. The helpful app includes troubleshooting guides, installation videos, news updates, and even project installation evaluation with DoorSnap.

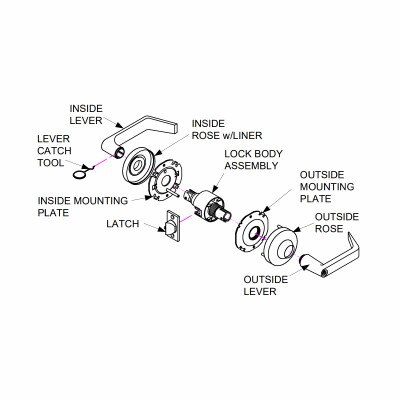

In The Box:
- SDC Electra™ 7200 Series Cylindrical Lockset Eclipse Style Lever
- Latch
- Door Strike
- Mounting Plate
- Turnkeys
- PR-7200 power regulator (Only for Z7250EQ)
- Template Backset
NOTE: FOR USE ON DOORS 1-3/8" ~ 2" (35mm ~ 51mm) THICK.
Tech Specs
- Part Number:
- Z7250EQ: Fail Safe Option
- Z7252EQ: Fail Secure Option
- Type:
- Cylindrical
- Solenoid Control
- Door Thickness: 13/4" to 2"
- Door Prep: ANSI A115.2
- Backset: 23/4"
- Latchbolt: 9/16" Throw
- Strike Standard: ANSI 47/8"
- Weight: 6 lbs
- Power Input: 12/24 VDC ± 10%
- Current Draw:
- 600 mA @ 12 VDC
- 300 mA @ 24 VDC
- Monitoring Contacts: SPDT; 3 Amps @ 30 VDC Resistive
- Certifications: UL10C, ULC-S104, CSFM Listed 3774-0324:0108
- Warranty: 5-Year Limited
