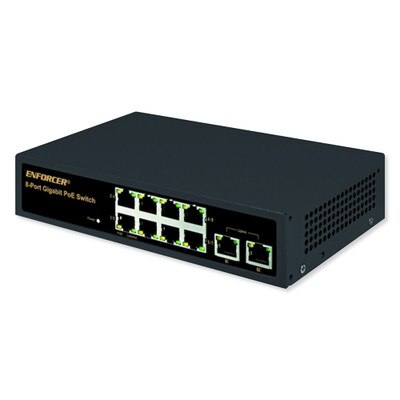

Seco-Larm 8-Port Enforcer Unmanaged PoE Switch

$123.30
SKU: SENS508UTGAQ

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Seco-Larm Enforcer Unmanaged PoE Switch (8 Port, 20Gbps) provides Ethernet connections and power to up to eight PoE devices, such as IP cameras, IP access, VOIP, IP speakers/intercoms, and other PoE devices. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD CCTV.

  • Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, VOIP, IP speakers/intercoms, etc.
  • Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
  • 2 uplink ports and 8 downlink ports
  • Easy plug-and-play installation
  • Supports 1000BaseT
  • IEEE 802.3x Flow control

In The Box:

  • Unmanaged PoE Switch, 8 Port, 20Gbps
  • Manual

Tech Specs

  • Part Number: NS-508UT-GAQ
  • Operating Voltage: 100~240 VAC
  • Number of Downlink Ports: 8
  • Number of Downlink Ports: 2
  • Power Consumption:<15W
  • Ethernet Speed: 10/100/1000Mbps (uplink, 1000Mbps)
  • Ethernet Standard:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.3x
    • IEEE 802.3ab
  • Transmission Distance: 328ft (100m)
  • PoE Capacity: 120W
  • Switch Capacity: 20Gbps
  • Transfer Rate:
    • 10Mbps: 14,880pps
    • 100Mbps: 148,800pps
    • 1000Mbps: 1,488,000pps
  • MAC Address Table: 4K
  • LED Indicators: Connection/transmission and PoE for each port, power
  • Dimensions: 7-7/8 x 2-3/8 x 4-5/8 inches (200 x 44 x 118 mm)
  • Credentials: FCC, RoHS, CE
  • Warranty: 1 Year
