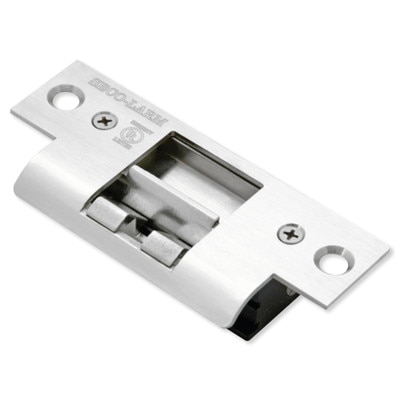

Seco-Larm Door Strike, No Cut

$103.91
SKU: SESD995CD3Q

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Seco-Larm Electric Door Strike can convert virtually any cylindrical lock set into an electronic access controlled locking system. You can also combine it with an optional Seco-Larm digital keypad (sold separately) for keyless high security.

  • Field-selectable for fail safe or fail-secure operation
  • Can use with an optional digital keypad
  • Suitable for office-type applications
  • Reversible non-handed design fits either right handed or left-handed doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • Static strength – 1,500 lbs. (680kg)
  • Stainless-steel keeper for strength and long life
  • Non-polarized connection
  • Tested to 100,000 cycles (UL Tested)
  • No horizontal or vertical adjustment

In The Box:

  • Door Strike
  • 2 x Electrical Connectors
  • 2 x Wiring Connectors
  • 2 x Mounting Tabs
  • 2 x Wood Screws
  • 4 x Machine Screws
  • 2 x Machine Screws (narrow)
  • 2 x Security Screws
  • 2 x Anchor Nuts
  • Manual

NOTES: For indoor use only. This strike has NO horizontal or vertical adjustments.

Tech Specs

  • Part Number: SD-995C-D3Q
  • Operating Voltage: 12/24 VDC
  • Current Draw:
    • 12VDC
    • 24VDC
  • Latch Throw: 9/16 inch (15mm)
  • Keeper Width: 1-7/16 inch (36mm)
  • Static Strength: 1,500 lb. (680kg)
  • Dynamic Strength: 70 lb.-ft (9.68kg-m)
  • Endurance:
    • 100,000 cycles (UL tested)
    • 1,000,000 cycles (factory tested)
  • Operating Temperature: 32° to 120° F (0° to 49° C)
  • Operating Humidity: 0 to 85%
  • Dimensions: 4-7/8 x 1-1/4 x 1-1/16 inches (124 x 32 x 27.5 mm)
  • Credentials: CE, RoHS, UL
  • Warranty: 3 Years
