Seco-Larm Enforcer 12VDC Switching CCTV Power Supply, 5A to 20A

$47.88 to $83.43
SKU: SEPCUxxxxPULQ

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Seco-Larm Enforcer 12VDC Switching CCTV Power Supply, 5A to 20A is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.

  • UL listed for 90~120 VAC
  • Adjustable output voltage to reduce voltage drop
  • Each output individually protected by a PTC fuse
  • Power output ON/OFF switch
  • Individual output status LEDs
  • Convenient AC input and DC output status LEDs on cover
  • Heavy-duty steel case with cover
  • Built-in short circuit and overheat protection
  • Power cord included, 3.3 feet (1m)

In The Box:

  • Power Supply
  • Power Cord
  • 2 x Rubber Rings
  • 2 x Keys
  • Manual

NOTES: Always test output voltage before connecting devices. Indoor use only. Do not mount the unit where it may be exposed to weather or high humidity. For professional installation only.

Tech Specs

  • Part Number:

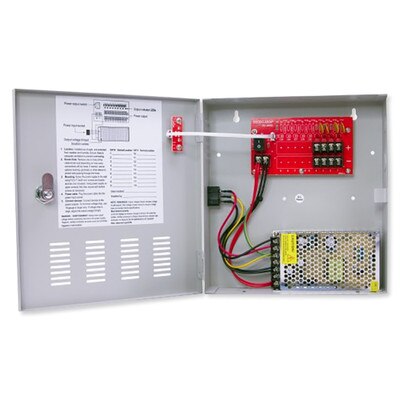

    • PC-U0405-PULQ (4 Outputs, 5A)

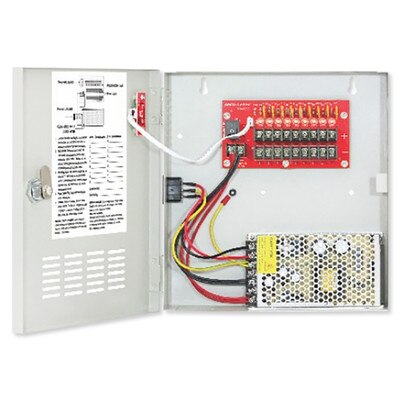

    • PC-U0910-PULQ (9 Outputs, 10A)

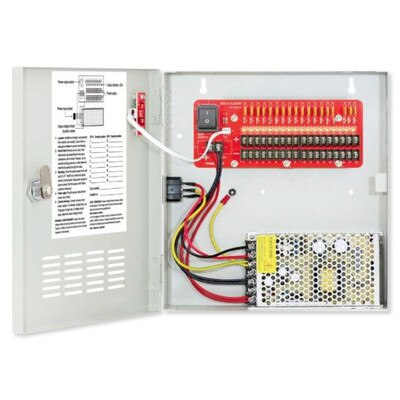

    • PC-U1810-PULQ (18 Outputs, 10A)

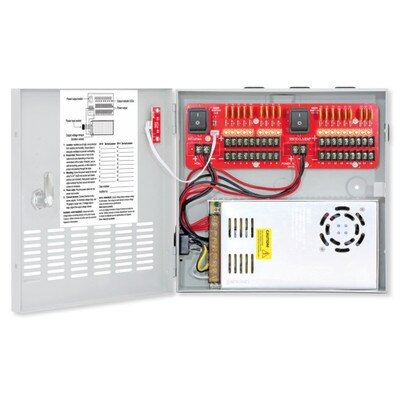

    • PC-U1820-PULQ (18 Outputs, 20A)
  • Total Supply Current:
    • 5A (PC-U0405-PULQ)
    • 10A (PC-U0910-PULQ)
    • 10A (PC-U1810-PULQ)
    • 20A (PC-U1820-PULQ)
  • Max. Current Per Output:
    • 1.6A (PC-U0405-PULQ)
    • 1.6A (PC-U0910-PULQ)
    • 1.1A (PC-U1810-PULQ)
    • 1.6A (PC-U1820-PULQ)
  • Output Fuse: PTC
  • Output Voltage:
    • 100~220 VAC ±10% (47~63 Hz): PC-U0405-PULQ
    • 100~220 VAC ±10% (47~63 Hz): PC-U0910-PULQ
    • 100~220 VAC ±10% (47~63 Hz): PC-U1810-PULQ
    • 110/220 VAC (50/60 Hz): PC-U1820-PULQ
  • LED Indicators:
    • Cover:
      • Green: AC Input, Red: DC Output
    • PDM (Power Distribution Module):
      • Red: DC Output
  • Operating Humidity: 90% (non-condensing)
  • Operating Temperature: 32°~104° F (0°~40° C)
  • Dimensions:
    • PC-U0405-PULQ: 9-7/16 x 10-1/4 x 2-3/8 inches (240 x 260 x 60 mm)
    • PC-U0910-PULQ: 9-7/16 x 10-1/4 x 2-3/8 inches (240 x 260 x 60 mm)
    • PC-U1810-PULQ: 10 x 10-5/16 x 3-1/8 inches (254 x 262 x 79 mm)
    • PC-U1820-PULQ: 10 x 10-5/16 x 3-1/8 inches (254 x 262 x 79 mm)
  • Weight:
    • PC-U0405-PULQ: 4 pounds, 3 ounces
    • PC-U0910-PULQ: 4 pounds, 7 ounces
    • PC-U1810-PULQ: 5 pounds, 2 ounces
    • PC-U1820-PULQ: 6 pounds, 1 ounces
  • Credentials: RoHS, UL, CE
  • Warranty: 2 Years

Product Docs
