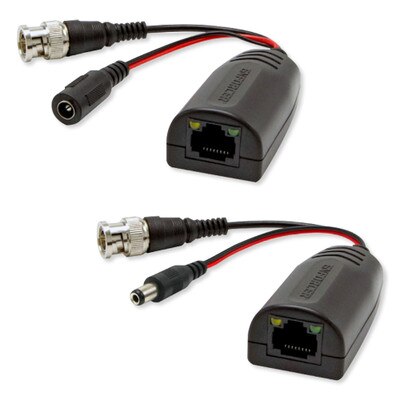

Seco-Larm Enforcer 4-in-1 HD Video and Power Balun

$13.16
SKU: SEEBP10120PHQ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

This passive signal adapter set uses Cat5e/Cat6 cables to deliver footage from your HD camera to your DVR or other HD video equipment using BNC connectors. Send high-quality, real-time video signals up to 1,443 feet (depending on format, resolution, and cable used).

  • Transmit BNC connections across Cat5e/Cat6 ethernet cables
  • 4-in-1 TVI / CVI / AHD / Analog video format up to 1080p/5MP
  • Transmits video and power up to 1,476ft (450m) depending on format, resolution, and cable used
  • TVS surge protection, lightning protection, anti-static and wave filters protect data, devices, and image quality
  • NTSC / PAL / SECAM compatible
  • 60dB Crosstalk and noise immunity enables exceptional interference rejection
  • Passive operation – no external power required
  • Real-time transmission over low-cost Cat5e/6 cable instead of costly coaxial cable
  • RJ45 Jack and pigtails for easy installation

In The Box:

  • Transmitter
  • Receiver

Tech Specs

  • Part Number: EB-P101-20PHQ

Video

  • Range:
    • TVI 1080p: 820 ft (250m) / 5MP: 590 ft (180m)
    • CVI 1080p: 820 ft (250m) / 4MP: 656 ft (200m)
    • AHD 1080p: 820 ft (250m) / 5MP: 590 ft (180m)
    • Analog (B/W): 1,476 ft (450m)
    • Analog (Color): 1,312 ft (400m)
  • Video format: NTSC, PAL, SECAM
  • Frequency response: DC~71MHz
  • Common / Differential mode rejection: 60dB, 15kHz~71MHz

Connections

  • Wire Type: UTP (Unshielded Twisted Pair) 24~16 AWG
  • Wire Category: Cat5, Cat6
  • Camera Side:
    • Video In: BNC
    • Power Out: DC Plug
  • DVR Side:
    • Video Out: BNC
    • Power In: DC Jack
  • UTP Connection: Nickel Plated
  • Attenuation: 8dB max.
  • Impedance:
    • Coax: male BNC 75Ω@1MHz
    • RJ45: 100Ω@1MHz

Protection

  • Surge Protection: Renewable solid state surge protection
  • Video Input: 2KV (common mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999)
  • Video Output: 2KV (differential mode), 10/700μs IEC6100-4-5/1955 (GB/T 1726, 5-1999)

Other

  • Max. Amperage: 1A@12VDC
  • Power Range: 755' (230m) max.
  • DC Loop Resistance: 52Ω/1000' (18Ω/100m)
  • Differential Capacitance: 19pF/ft max. (62pF/m max.)
  • Power: No external power required
  • Operating Temperature: -4°~158°F (-20°~70°C)
  • Storage Temperature: -40°~302°F (-40°~150°C)
  • Humidity Range: 0~95% (Non-condensing)
  • Case: ABS Plastic
  • Weight: 2.5-oz (72g)
  • Cable Length: 4-3/4" (120mm)
  • Dimensions: 2-3/8"x 13/16" x 13/16" (60 x 20 x 30mm) Excluding pigtail and BNC connector
  • Warranty: 2 Year Limited
