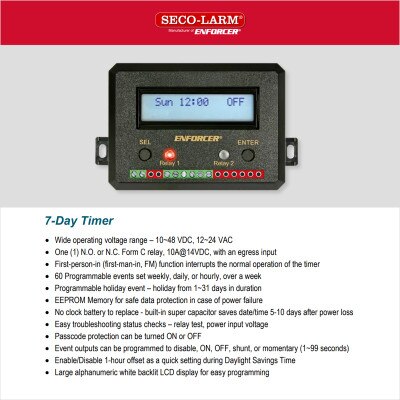

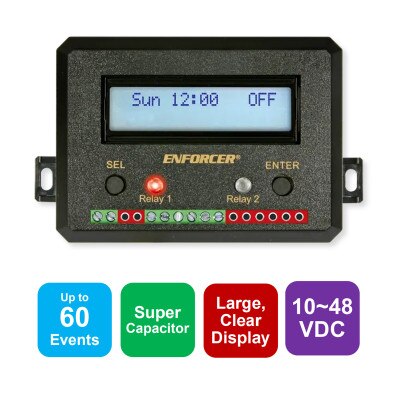

Seco-Larm Enforcer 7-Day Timer Module
Product Description
Used to turn appliances or devices on and off according to a schedule.
- 12~24 VDC/VAC Operation.
- Enclosed terminals for a safer installation.
- Adjustable output time.
- Programmable security code lock out.
- 12 or 24-Hour clock format.
- 16 Schedules including daily, weekly, weekends, etc.
- Program up to 60 flexible events.
- Memory saved if power fails.
- Backup battery included.
- Form C relay output (10A at 120VAC/28VDC).
- Egress input terminal.
- Easy-to-read backlit LCD display.
- Holiday function (up to 99 days).
- Mode selection button for manual relay operation.
*Preserves clock time only. External power must be present for relay to function.
Tech Specs
- Operating voltage: 12~24 VAC/VDC
- Current draw
- Standby: 15mA at 12VDC
- Active: 70mA at 12VDC
- Relay rating: 10A at 120VAC/28VDC
- Backup battery: 1 x CR-2016 (included)
- Weight: 4.6 ounces (130g)

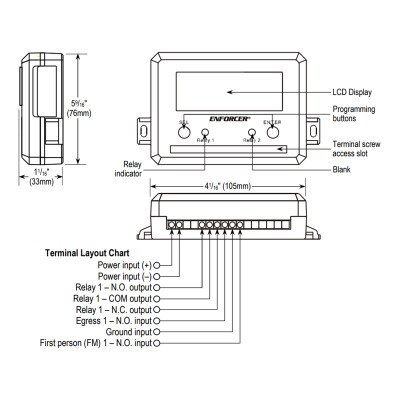

- Dimensions: 4-3/16 x 3-1/16 x 1-1/4 inches (107 x 78 x 31 mm)
